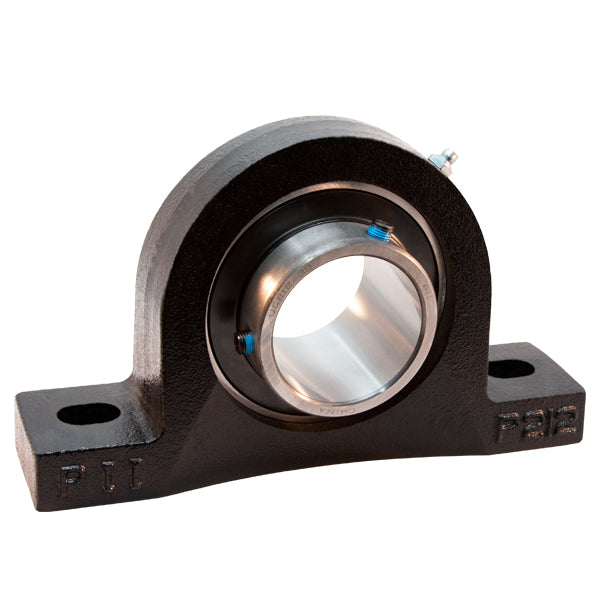

FYH® UCPX06 19 UCP Medium Duty Pillow Block Unit, 1-3/16 in Dia Bore, 5 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 1-7/8 in OAL 3-21/32 in OAH
FYH® UCPX06 19 UCP Medium Duty Pillow Block Unit, 1-3/16 in Dia Bore, 5 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 1-7/8 in OAL 3-21/32 in OAH
-
BrandFYH®
-
Manufacturer Part NumberUCPX06 19
-
CountryUSA
-
Load Capacity25.7 kN Dynamic/15.4 kN Static
-
Locking DeviceSet Screw
-
MaterialCast Iron
-
TypeMedium Duty
-
SeriesUCP
-
Base Width2-1/4 in
-
Base to Bore Centerline1-7/8 in
-
Bolt Center-to-Center Length5 in
-
Bore Diameter1-3/16 in
-
Bore TypeCylindrical
-
Overall Height3-21/32 in
-
Overall Length1-7/8 in
-
Overall Width2-1/4 in
