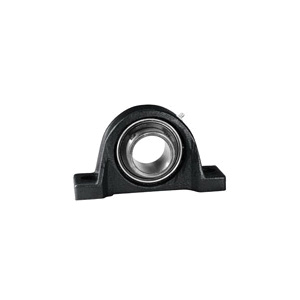

Link-Belt® 10438202 200 Standard-Duty Pillow Block Ball Bearing, 3-7/16 in Dia Bore, 10 in L Bolt Center-to-Center, 3-3/4 in Base to Bore Centerline, 13 in OAL x 7-7/16 in OAH
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
-
BrandLink-Belt®
-
UPC793699073249
-
Manufacturer Part Number10438202
-
CountryUSA|Canada
-
Load Capacity18850 lb Dynamic/14300 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed2950 rpm
-
TypeStandard-Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series200
-
Base Width3-1/2 in
-
Base to Bore Centerline3-3/4 in
-
Bolt Center-to-Center Length10 in
-
Bore Diameter3-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height7-7/16 in
-
Overall Length13 in
-
Overall Width3-9/16 in
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Relubricatable bearing
- Standard backing
- Integral bearing seals
- Wide inner ring for increased shaft stability
-
Alternative Part NumberP3U255N
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
