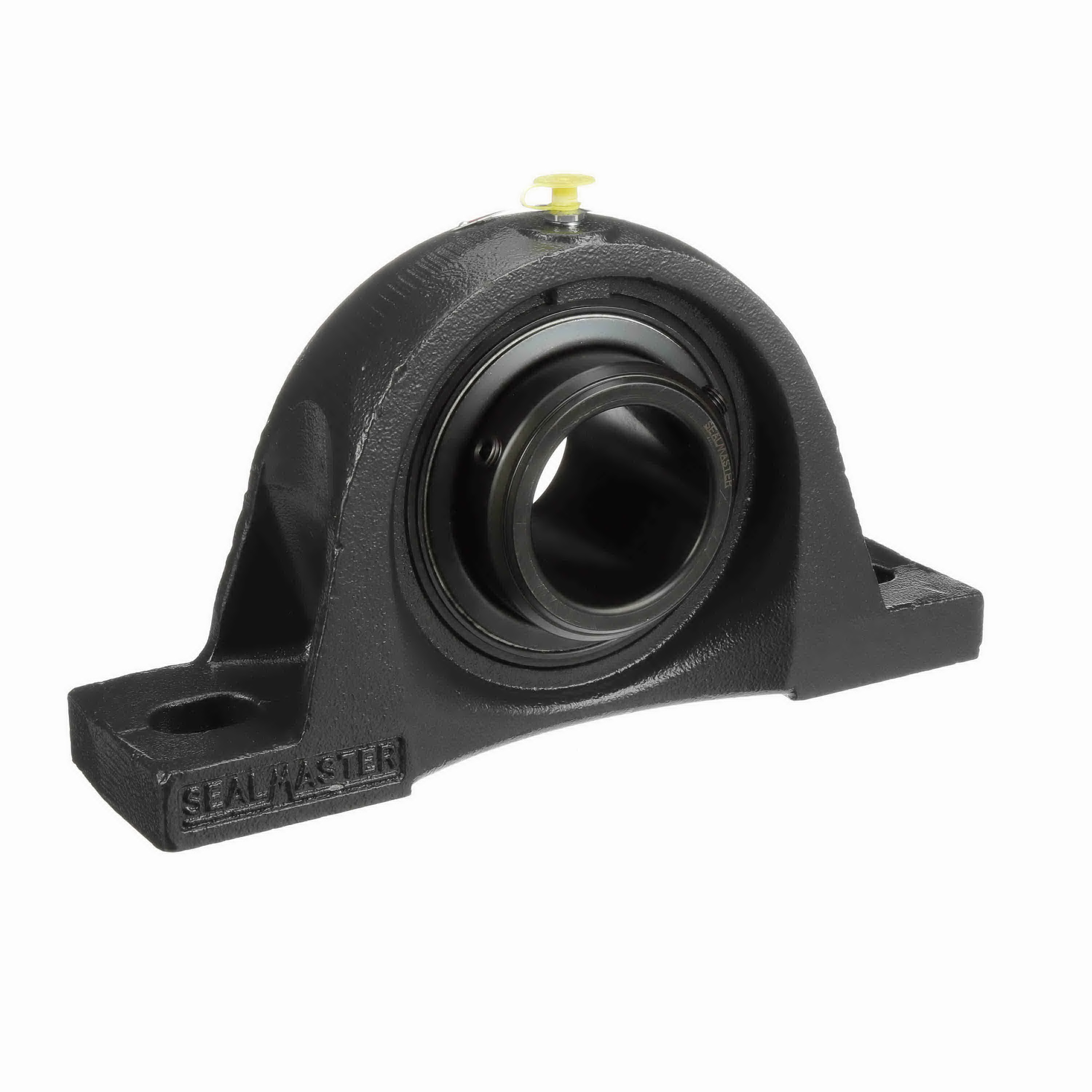

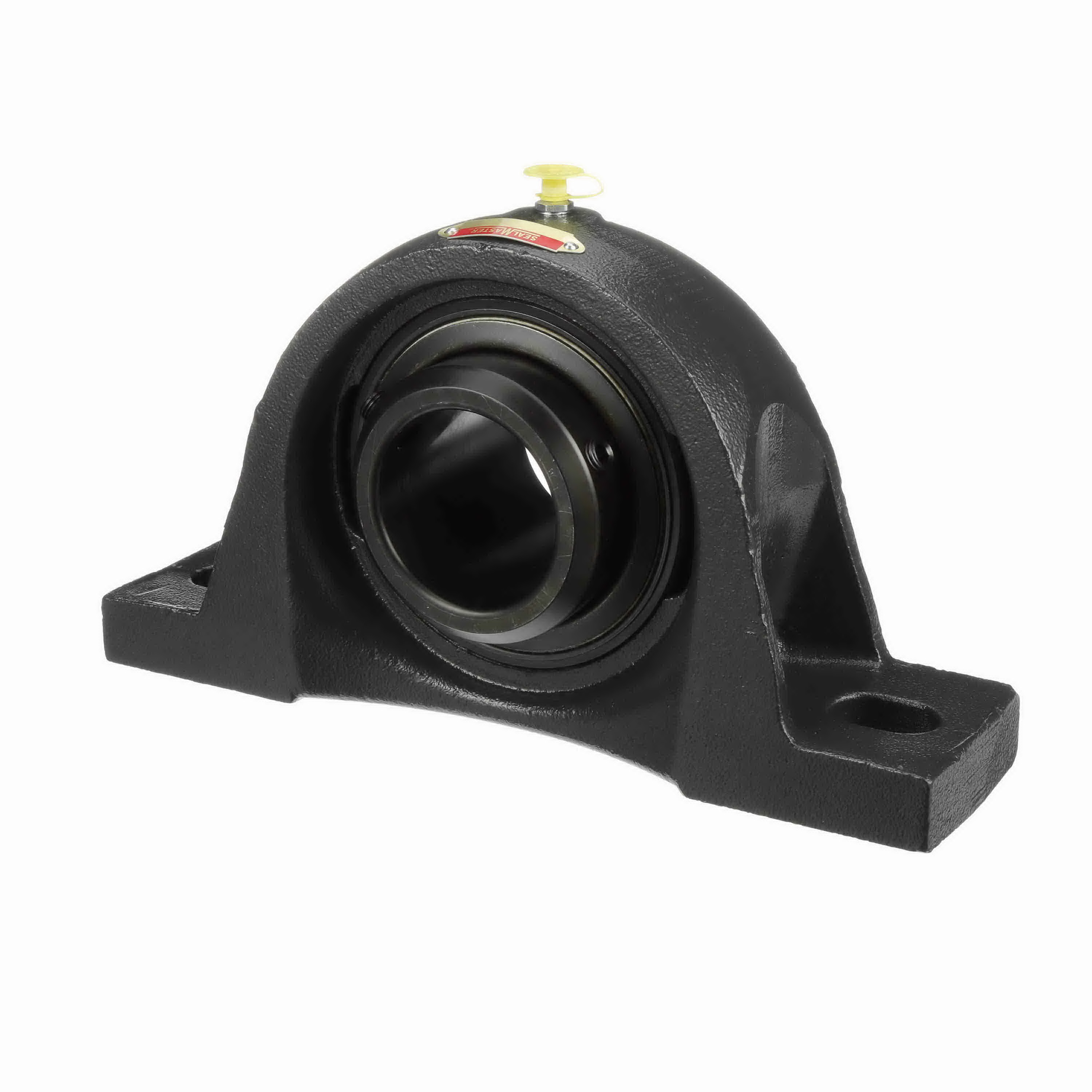

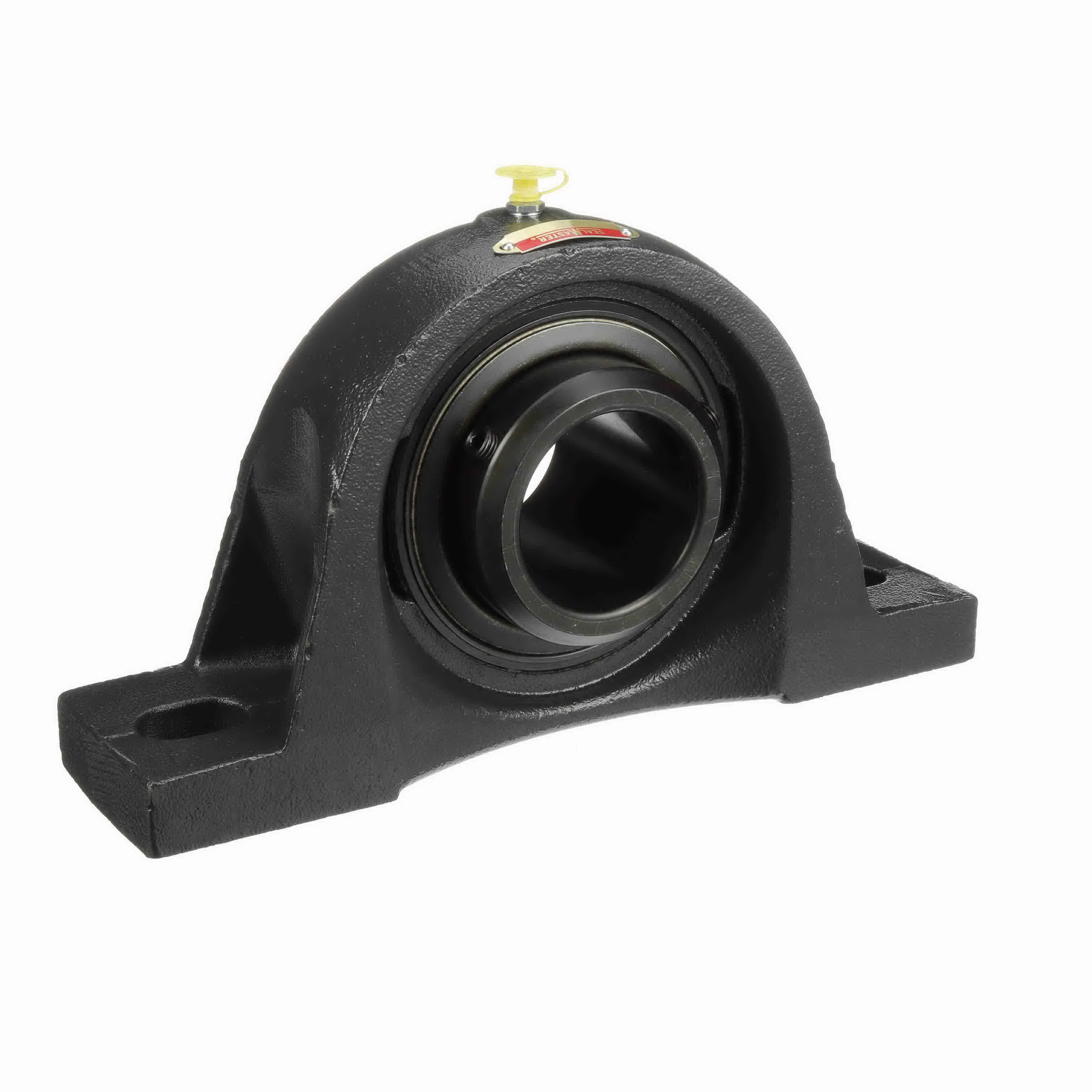

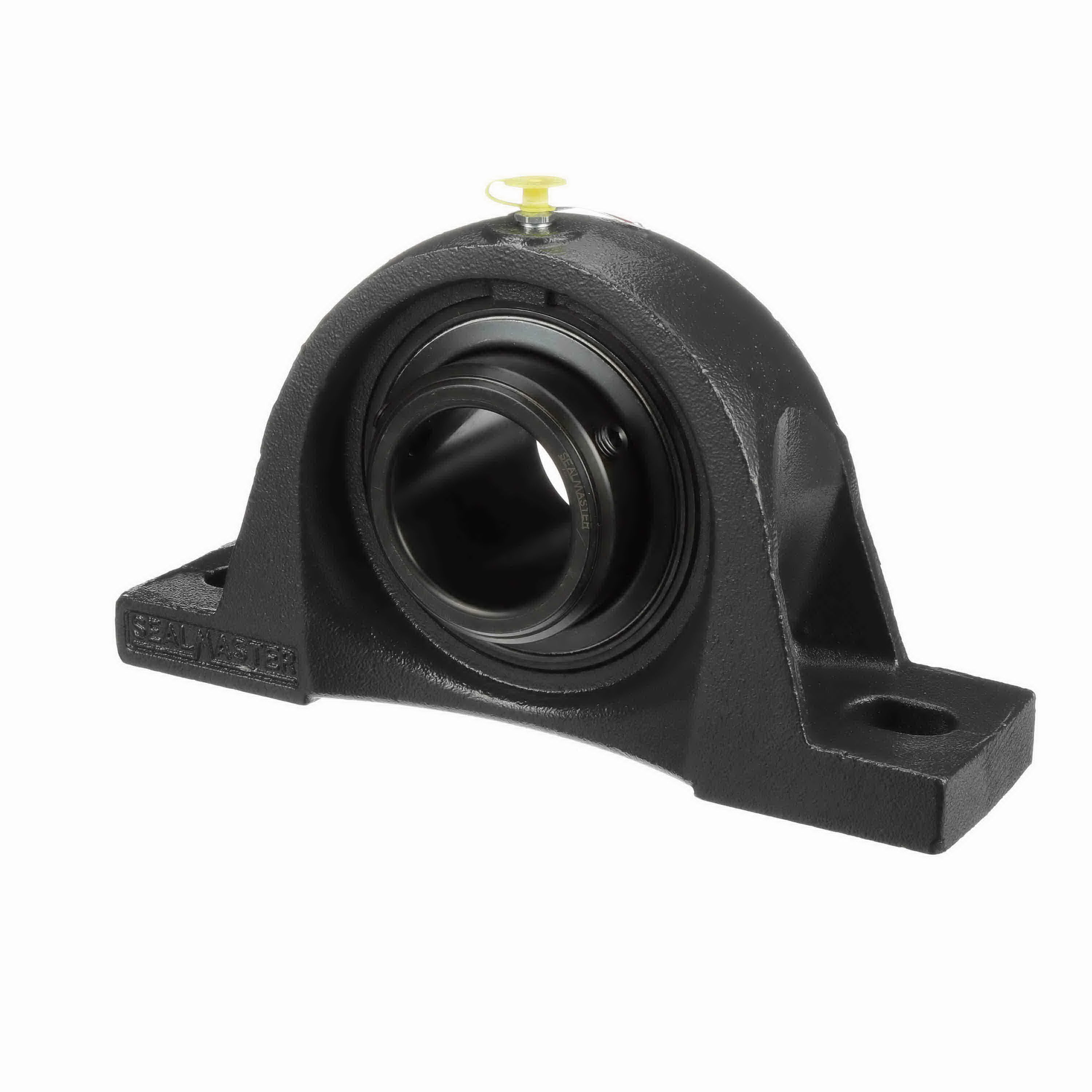

Sealmaster 2-15/16"-ID PILLOW BLOCKS SEA SPD-47
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either set screw or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP™ grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions as illustrated.
-
BrandSealmaster®
-
UPC662461015827
-
Manufacturer Part Number702151
-
CountryUSA
-
Load Capacity14839 lb Dynamic
-
Locking DeviceDouble Set Screw
-
Temperature Rating220 deg F
-
FinishBlack Oxide
-
Material52100 Steel
-
Maximum Speed3400 rpm
-
Type1-Piece Standard Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeFelt Labyrinth
-
SeriesSPD
-
Base Width3-3/8 in
-
Base to Bore Centerline3-3/4 in
-
Bolt Center-to-Center Length9-1/4 to 10-3/4 in
-
Bore Diameter2.938 in
-
Bore TypeStraight
-
Expansion TypeNon-Expansion
-
Overall Height7.188 in
-
Overall Length13 in
-
Overall Width3-1/2 in
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSPD-47
-
UNSPSC31171511
-
Package DescriptionEACH
-
WarrantyLimited
-
