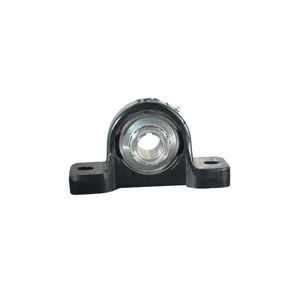

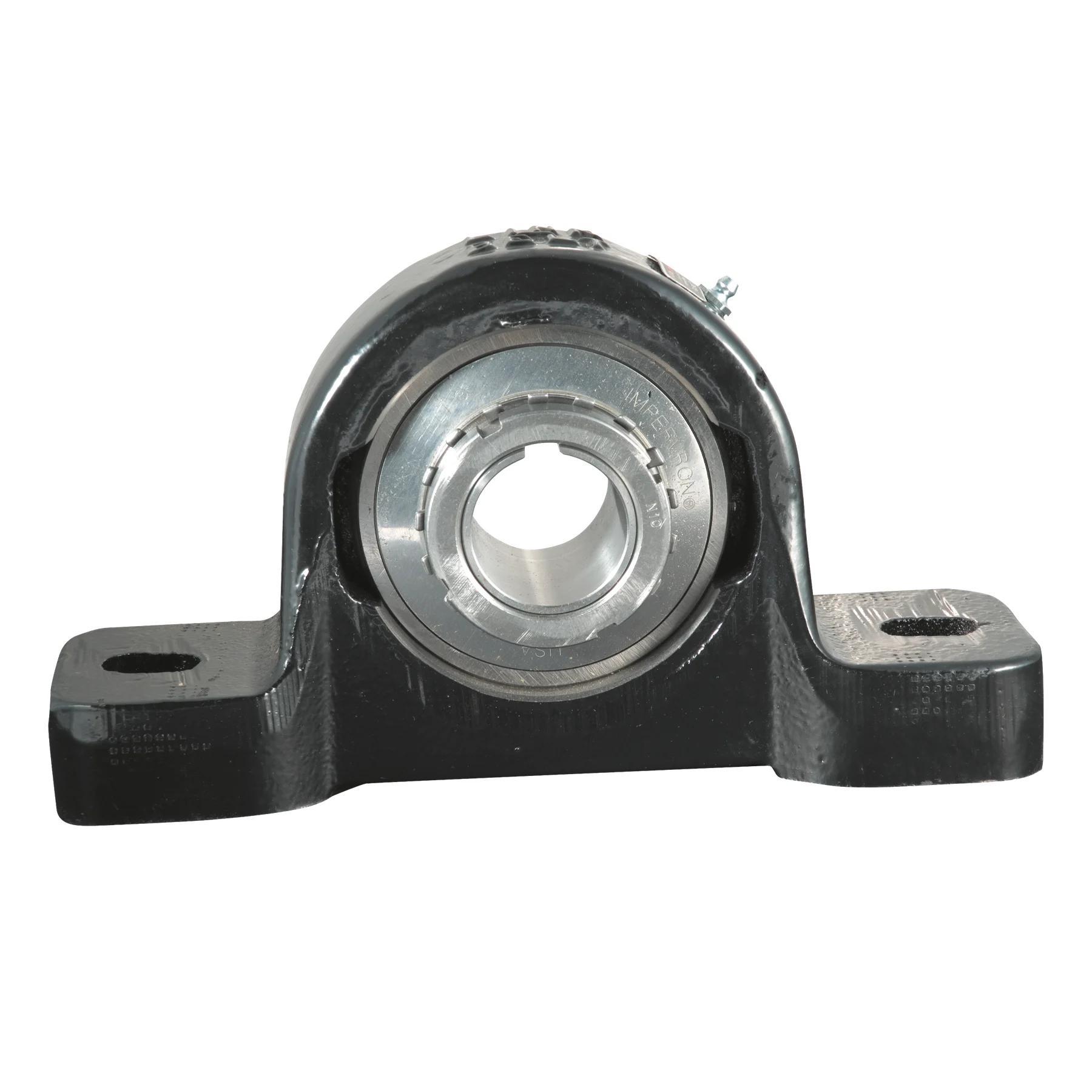

Link-Belt® 10423248 300 Heavy Duty Pillow Block Ball Bearing, 2-7/16 in Dia Bore, 12 in L Bolt Center-to-Center, 4-1/4 in Base to Bore Centerline, 15-1/8 in OAL x 8-3/8 in OAH
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
-
BrandLink-Belt®
-
UPC793699071290
-
Manufacturer Part Number10423248
-
CountryUSA|Canada
-
Load Capacity26140 lb Dynamic/17300 lb Static
-
Locking DeviceAdapter Mounted
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed3700 rpm
-
TypeHeavy Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeClearance
-
Series300
-
Base Width4 in
-
Base to Bore Centerline4-1/4 in
-
Bolt Center-to-Center Length12 in
-
Bore Diameter2-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height8-3/8 in
-
Overall Length15-1/8 in
-
Overall Width3-3/16 in
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Wide inner ring is for greater contact surface between shaft and bearing
- Case carburized inner ring resists fracture under shock and heavy loads
- Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
- Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
- Enhanced life mounting style
- Standard backing
- Bearing sealed unit
- Alignable and relubricatable
- Steel clad clearance sea
-
Alternative Part NumberPU3K39
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
