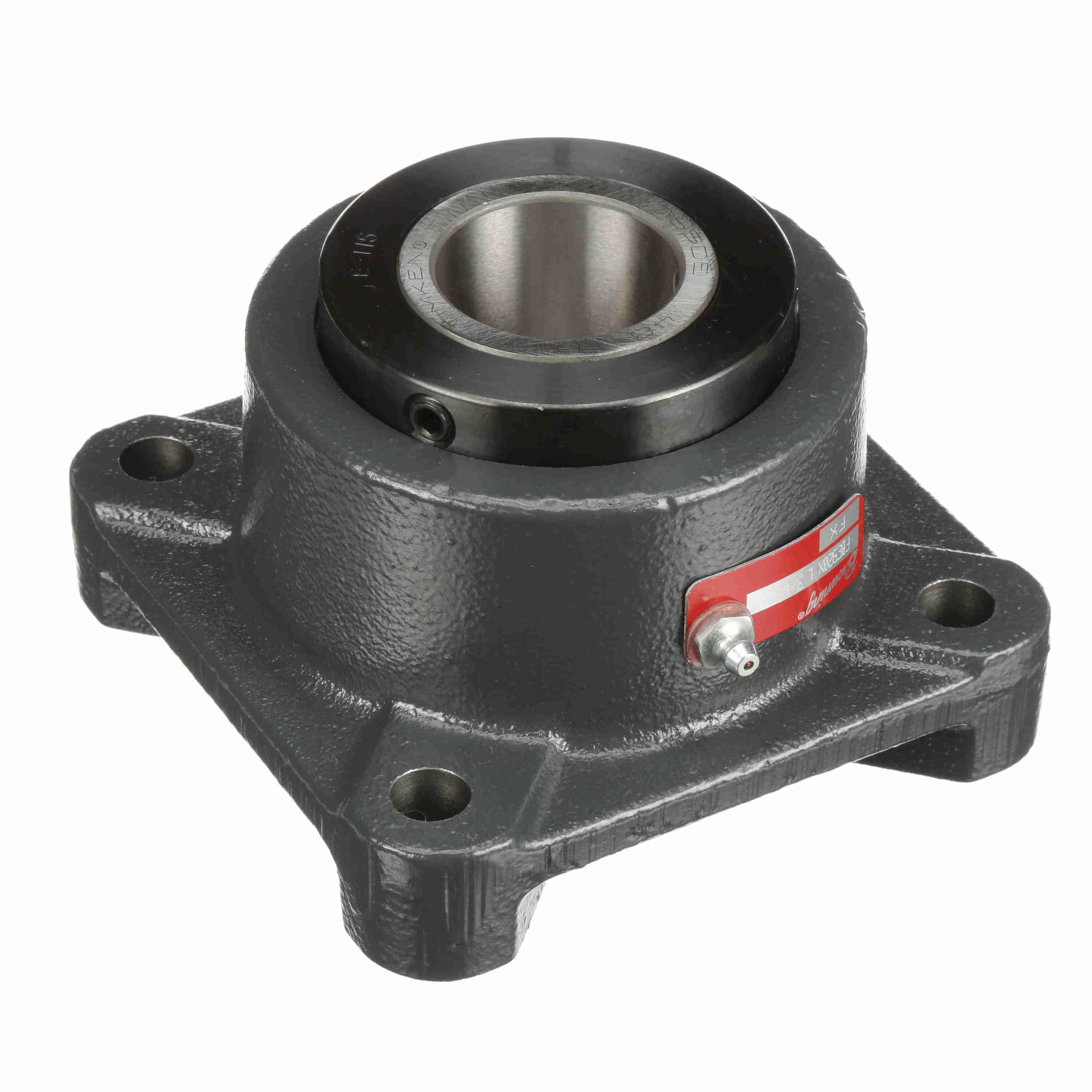

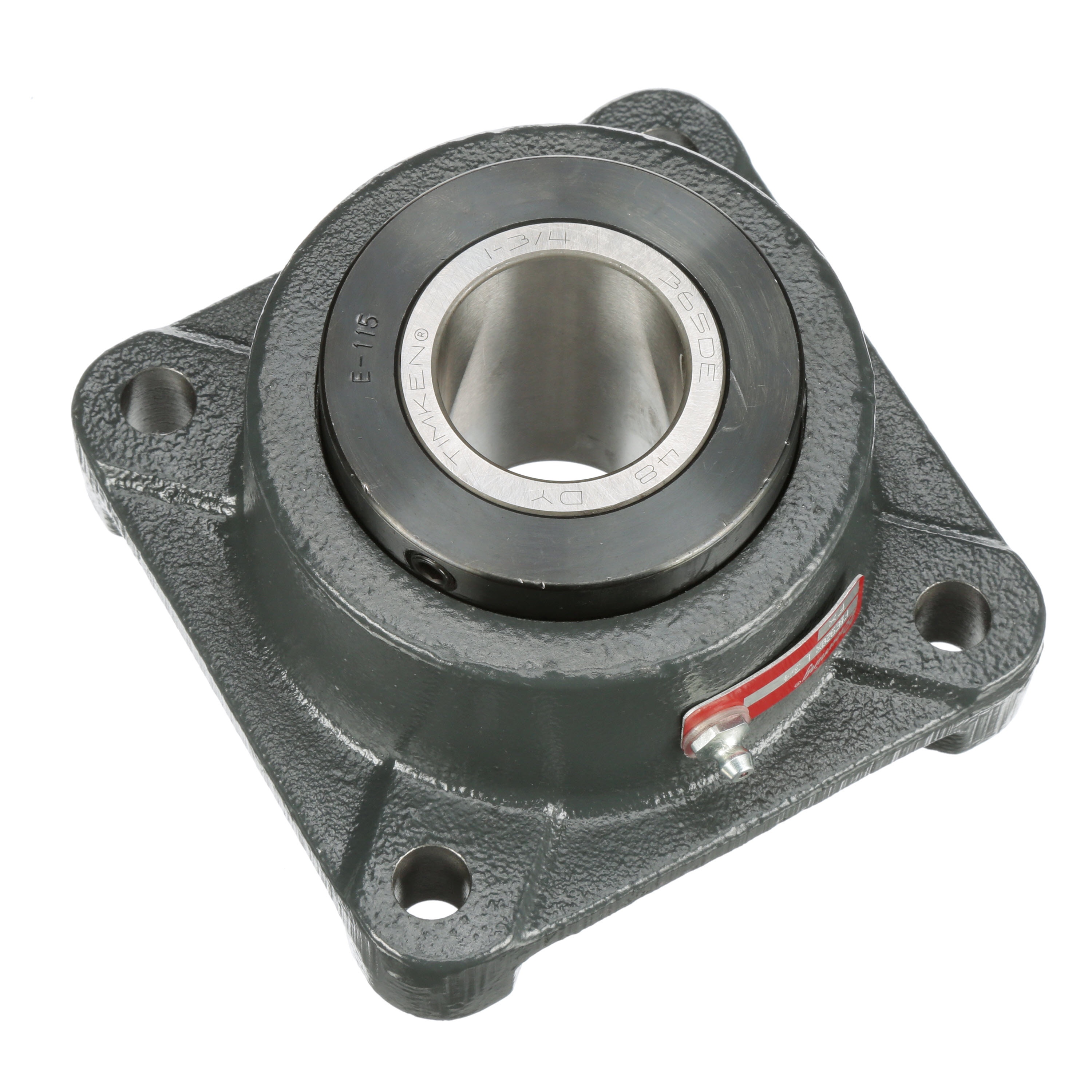

Browning 1-3/4"-ID 4-BOLT TRB FLANGE UNITS BRW FBE-920 X 1-3/4
Browning® E920 series mounted tapered roller bearings feature durable 1-piece non-expansion housings with Type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation. It also contains a contact face riding seal in order to provide a good balance between contaminant entry, grease retention and friction. Depending on your application requirements, these bearings are available in a wide variety of bore sizes and housing configurations.
-
BrandBrowning®
-
UPC662289588664
-
Manufacturer Part Number730024
-
CountryUSA
-
Load Capacity8070 lb Dynamic
-
Locking DeviceDouble Set Screw Collar
-
Temperature Rating-20 to 200 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed2000 rpm
-
TypeNon-Expansion Round/Straight Bore
-
Seal MaterialRubber
-
SeriesFBE920
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length4-3/8 in
-
Bolt Circle Diameter6-3/16 in
-
Bore Diameter1-3/4 in
-
Overall Depth3-5/8 in
-
Overall Height5-5/8 in
-
Overall Length/Diameter5-5/8 in
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Single lip contact face-riding seals rotate with the shaft
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
- Single lip contact face-riding seals rotate with the shaft
- Powder coat epoxy 2-bolt cast iron housing
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading_x005f Single lip contact face-riding seals rotate with the shaft_x005f Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews_x005f Powder coat epoxy 2-bolt cast iron housing
-
Alternative Part NumberFBE920X 1 3/4
-
UNSPSC31171500
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
