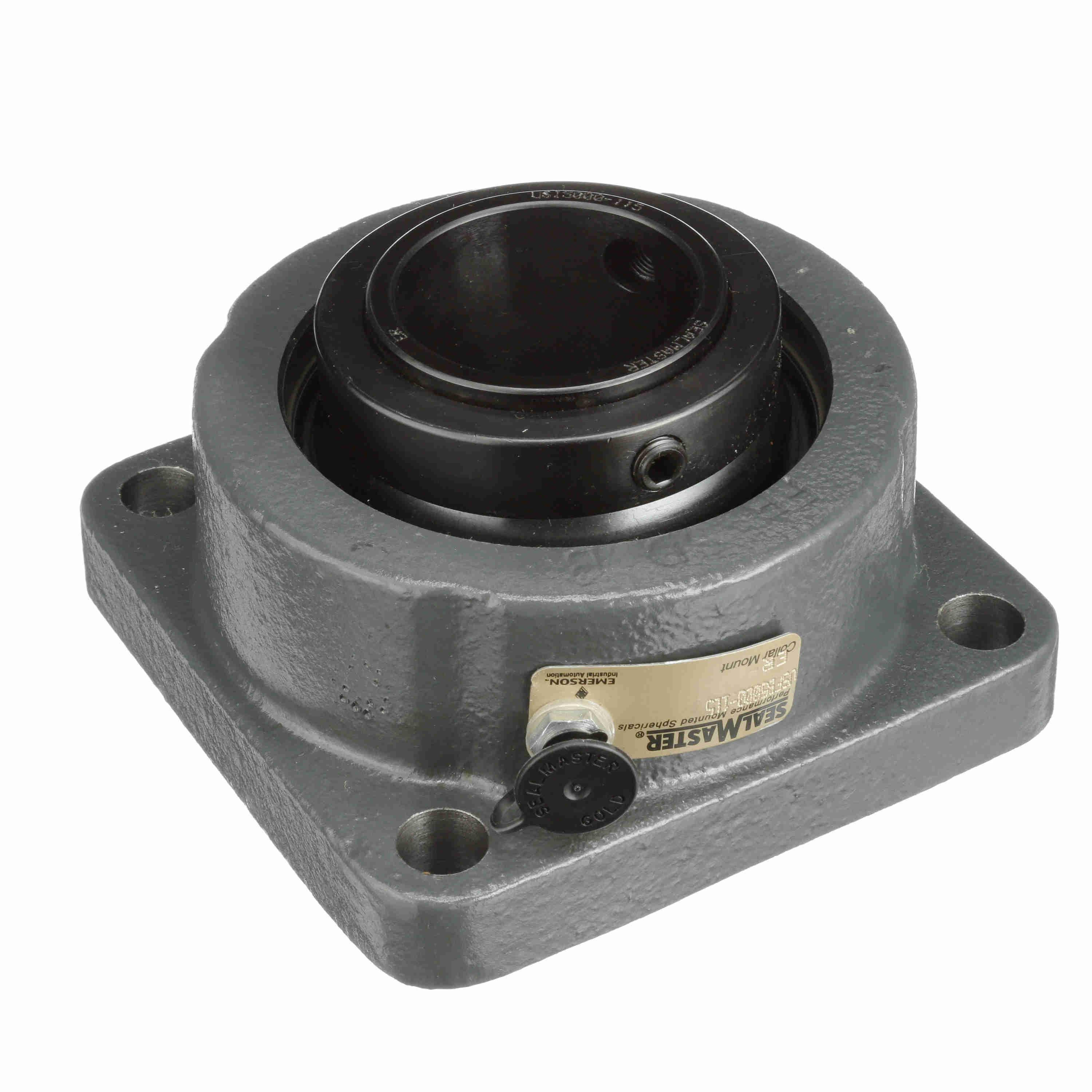

Sealmaster 1-15/16"-ID 4-BOLT SPH FLANGE UNIT BRW SFB-1000-NE X 1-15/16
SealmasterĀ® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.
-
BrandSealmasterĀ®
-
UPC662461361122
-
Manufacturer Part Number737166
-
CountryUSA
-
Load Capacity23520 lb Dynamic/29918 lb Static
-
Locking DeviceCollar Mount/Set Screw
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed4000 rpm
-
TypeNon-Expansion Round/Straight Bore
-
Seal MaterialFelt
-
SeriesUSFB5000
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length4-1/16 in
-
Bolt Circle Diameter5-3/4 in
-
Bore Diameter1-15/16 in
-
Overall Depth2-61/64 in
-
Overall Height5-3/16 in
-
Overall Length/Diameter5-3/16 in
- SealmasterĀ® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
- The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
- Retainer metal
- 52100 black oxide coated steel bearing
- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
-
Alternative Part NumberUSFB5000-115
-
UNSPSC31171500
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
