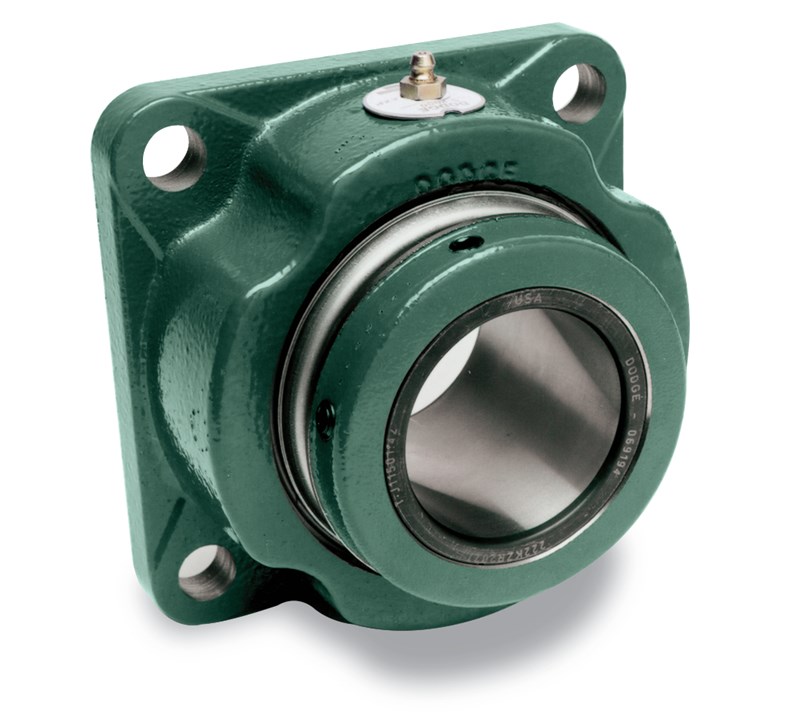

Dodge® 071494 407 Expansion Type S-2000 Flange Mount Roller Bearing Unit, 4-7/16 in Dia Bore, 8-3/4 in L Bolt Center-to-Center, 12.37 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 10.88 in OAL/Dia
Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. A variety of housing styles and sealing options allow for easy application on material and air handling machinery. Industry standard dimensions make the products interchangeable with many brands.
-
BrandDodge®
-
UPC782476187194
-
Manufacturer Part Number071494
-
CountryUSA
-
Load Capacity104000 lb Dynamic/132000 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-100 to 200 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed990 rpm
-
TypeExpansion Type S-2000
-
Seal MaterialRubber
-
Series407
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length8-3/4 in
-
Bolt Circle Diameter12.37 in
-
Bore Diameter4-7/16 in
-
Overall Depth7.1 in
-
Overall Height10.88 in
-
Overall Length/Diameter10.88 in
- Factory lubed, sealed and adjusted
- Larger rollers
- More contact area
- Case-carburized inner rings resist cracking
- Static or dynamic misalignment up to +/-1 deg
- Expansion capability up to 3/8 in
- Corrosion resistant flinger blocks contaminants
- Reinforced polyamide cage
- 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
- Patented nitrile multiple lip seal resists heat and chemical breakdown
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101935928 |
| Motion Industries | 02952435 |
-
Alternative Part NumberEF4B-S2-407RE
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
-
Warranty Information
-
Catalog
