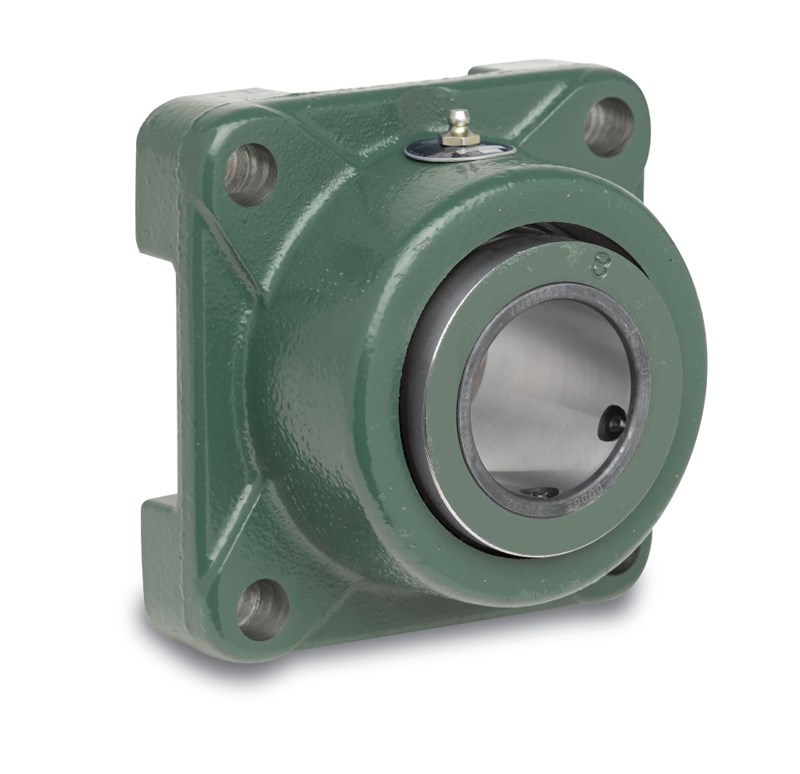

Dodge® 023093 103 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 1-3/16 in Dia Bore, 2.88 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 3-3/4 in OAL/Dia
Dodge® 023093 103 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 1-3/16 in Dia Bore, 2.88 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 3-3/4 in OAL/Dia
-
BrandDodge®
-
UPC782475697762
-
Manufacturer Part Number023093
-
CountryUSA
-
Load Capacity3450 lb Dynamic/15760 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-100 to 200 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed4490 rpm
-
TypeNon-Expansion Type E-Xtra Triple Lip
-
Series103
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length2.88 in
-
Bore Diameter1-3/16 in
-
Overall Depth2.87 in
-
Overall Height3-3/4 in
-
Overall Length/Diameter3-3/4 in
- Stocked in all configurations
- Completely assembled, factory adjusted and properly lubricated shaft
- New XTS seal provides added protection against contamination
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738757 |
| Motion Industries | 00571724 |
-
Alternative Part NumberF4B-E-103R|23093
-
UNSPSC31171516
-
Package DescriptionEACH
-
Specification Sheet
-
Line Drawing
-
Specification Sheet
-
Owners/User Manual
-
Line Drawing
