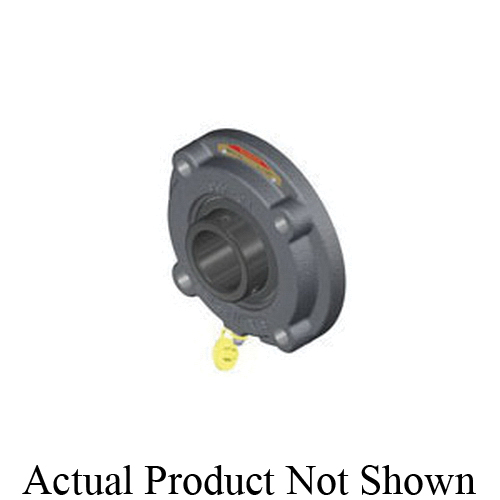

Sealmaster 3"-ID 4-BOLT CARTRIDGE FLANGE UNIT SEA MFC-48
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461013489
-
Manufacturer Part Number701813
-
CountryUSA
-
Load Capacity17412 lb Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed2250 rpm
-
TypeMedium Duty Non-Expansion Round Straight Bore
-
Seal MaterialFelt
-
SeriesMFC
-
Bearing MaterialSteel
-
Bolt Circle Diameter7-1/2 in
-
Bore Diameter3 in
-
Overall Depth2 in
-
Overall Length/Diameter8-3/4 in
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Stamped steel rubber mounted flange
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberMFC-48
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
