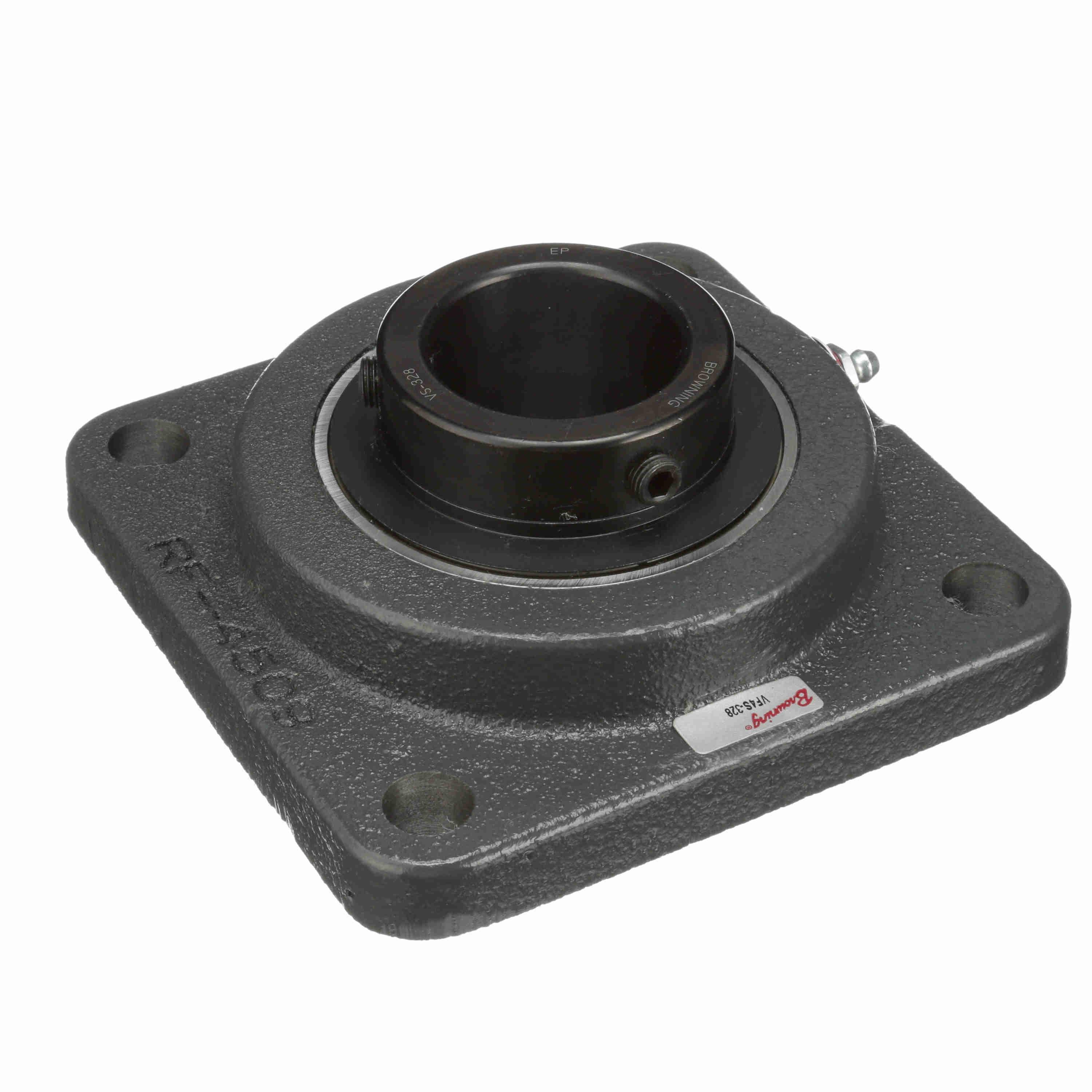

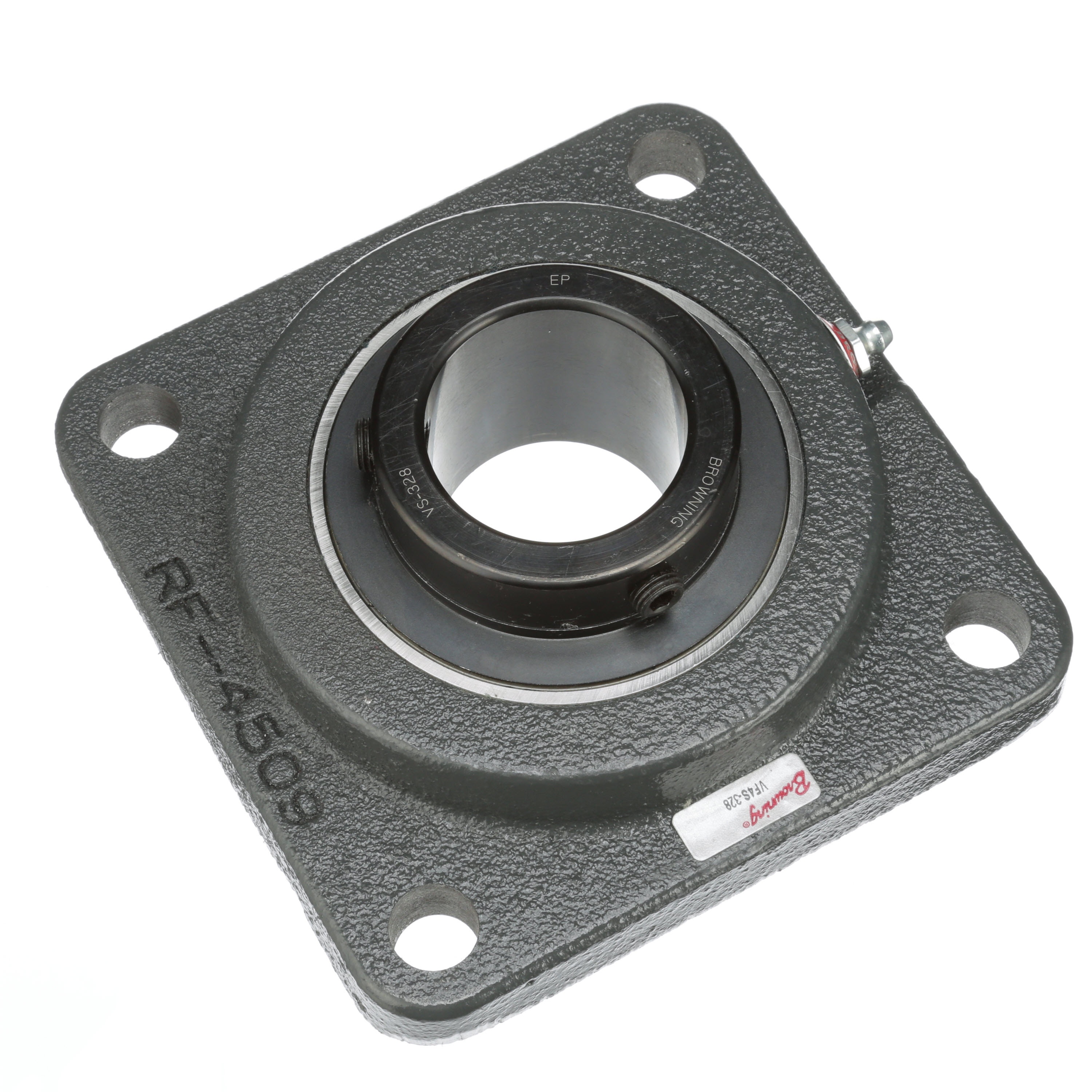

Browning 1-3/4"-ID 4-BOLT BB FLANGE UNITS BRW VF-4-S-328
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289522965
-
Manufacturer Part Number767905
-
CountryUSA
-
Load Capacity7889 lb Dynamic/5216 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type4-Bolt
-
Maximum Speed3000 rpm
-
TypeMedium Duty Non-Expansion Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF4S 300
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length4-3/8 in
-
Bore Diameter1-3/4 in
-
Overall Depth2-5/32 in
-
Overall Height5-5/8 in
-
Overall Length/Diameter5-5/8 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- 52100 steel insert
- Powder coat epoxy cast iron housing
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVF4S-328
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
