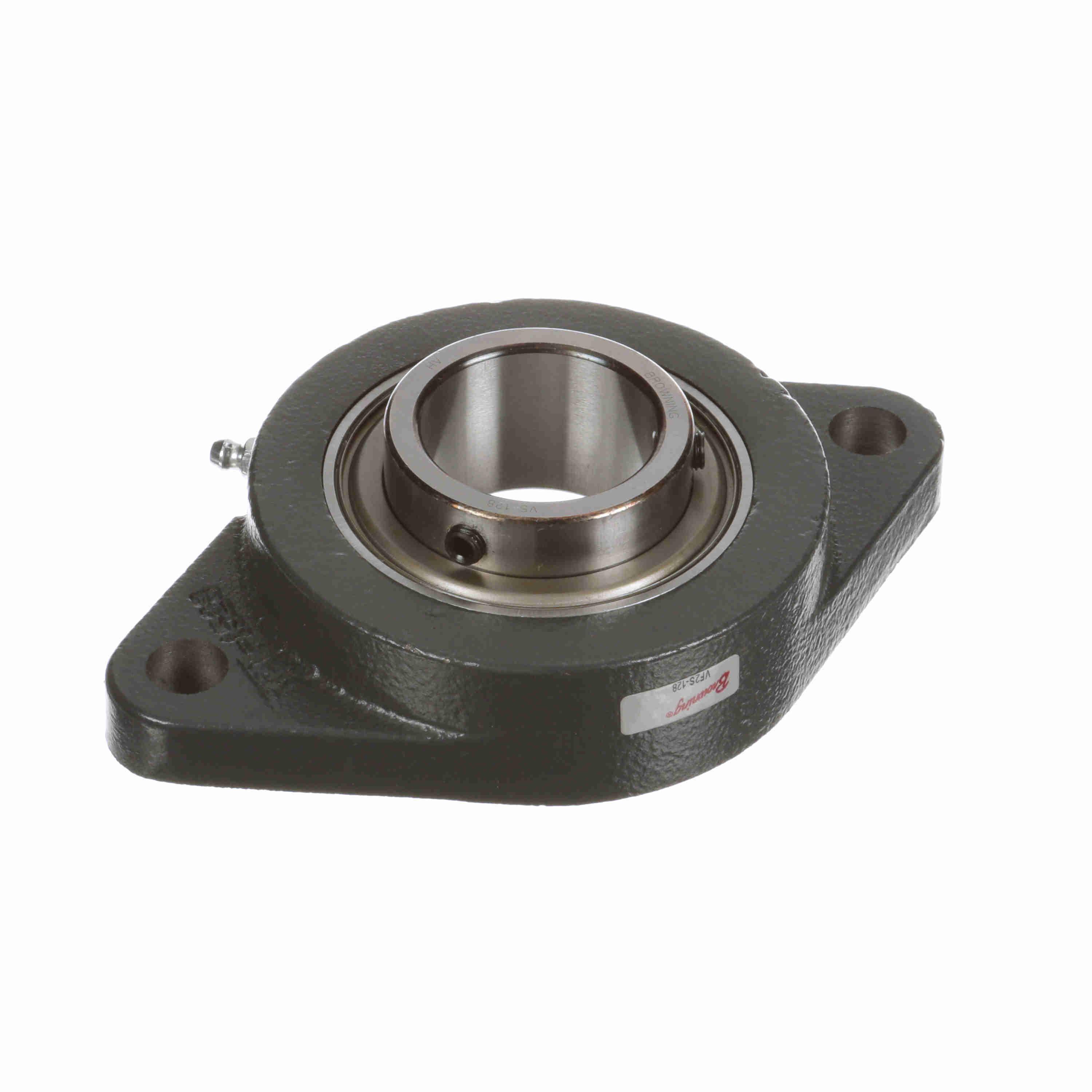

Browning 1-3/4"-ID 2-BOLT BB FLANGE UNITS BRW VF-2-S-128
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289312016
-
Manufacturer Part Number767677
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type2-Bolt
-
Maximum Speed2000 rpm
-
TypeIntermediate Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
SeriesVF2S 100
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5-27/32 in
-
Bore Diameter1-3/4 in
-
Overall Depth1-13/16 in
-
Overall Height7-1/16 in
-
Overall Length/Diameter4-3/8 in
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- Lithium complex NLGI #2 grease
- Cast iron housing
- NLGI #2 lithium complex grease
- 52100 steel insert
-
Alternative Part NumberVF2S-128
-
UNSPSC31171504
-
Package Description1/PK
-
Warranty1 Year
-
