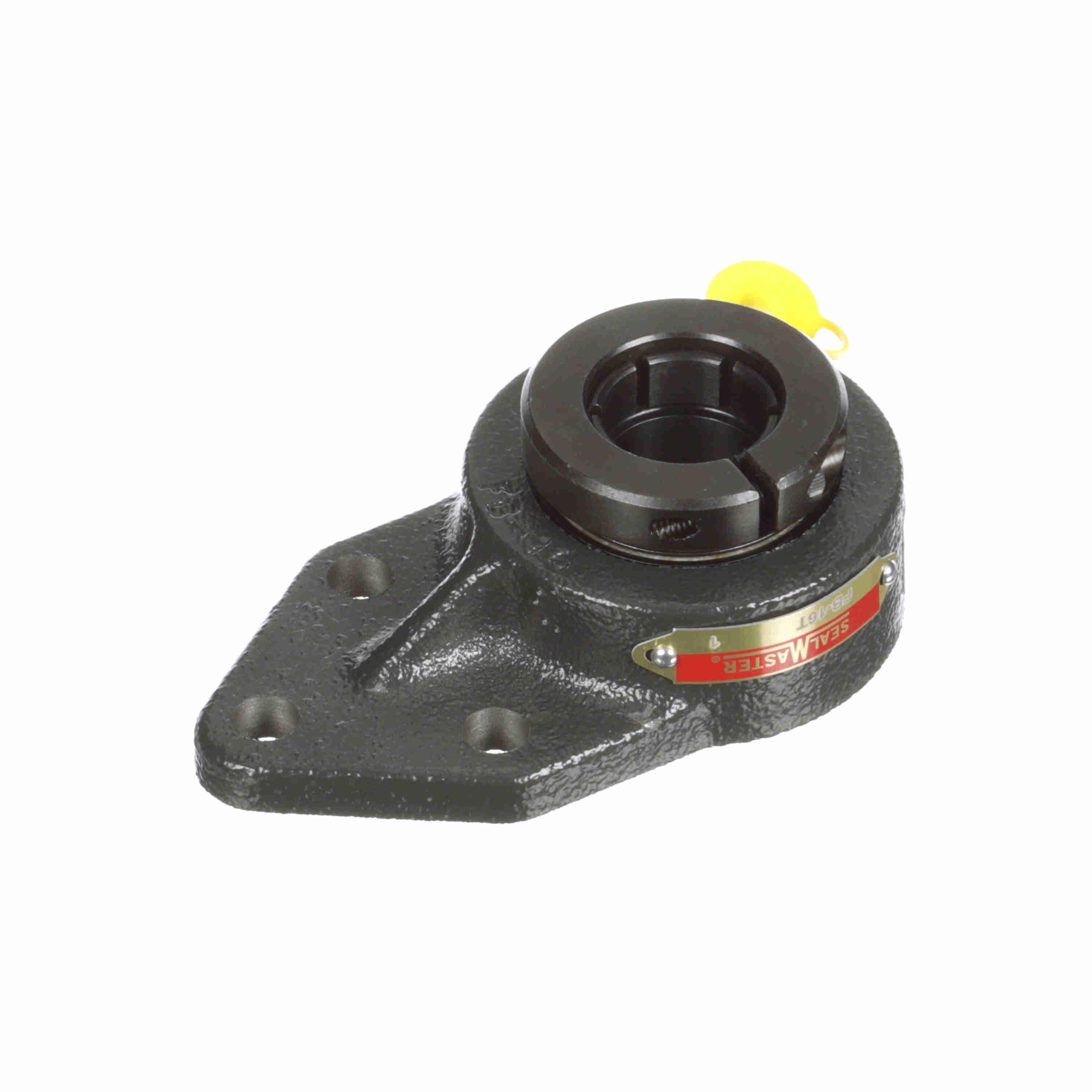

Sealmaster® 705614 FB Series Non-Expansion Round Straight Standard Duty Flange Mount Ball Bearing Unit, 1 in Dia Bore, 2-1/2 in L Bolt Center-to-Center, 3-Bolt Flange Mount, 1-13/16 in OAL/Dia
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461031599
-
Manufacturer Part Number705614
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Locking DeviceSkwezloc® Locking
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
Flange Mounting Type3-Bolt
-
Maximum Speed9000 rpm
-
TypeNon-Expansion Round Straight Standard Duty
-
Seal MaterialFelt
-
SeriesFB Series
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length2-1/2 in
-
Bore Diameter1 in
-
Overall Depth3/8 in
-
Overall Height3-3/8 in
-
Overall Length/Diameter1-13/16 in
- Wide outer ring
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Zone hardened inner race
- GoldPlex-HP grease
- 52100 black oxide coated steel bearing
- Stamped steel rubber mounted flange
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc concentric locking for near perfect concentricity
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberFB-16T
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
