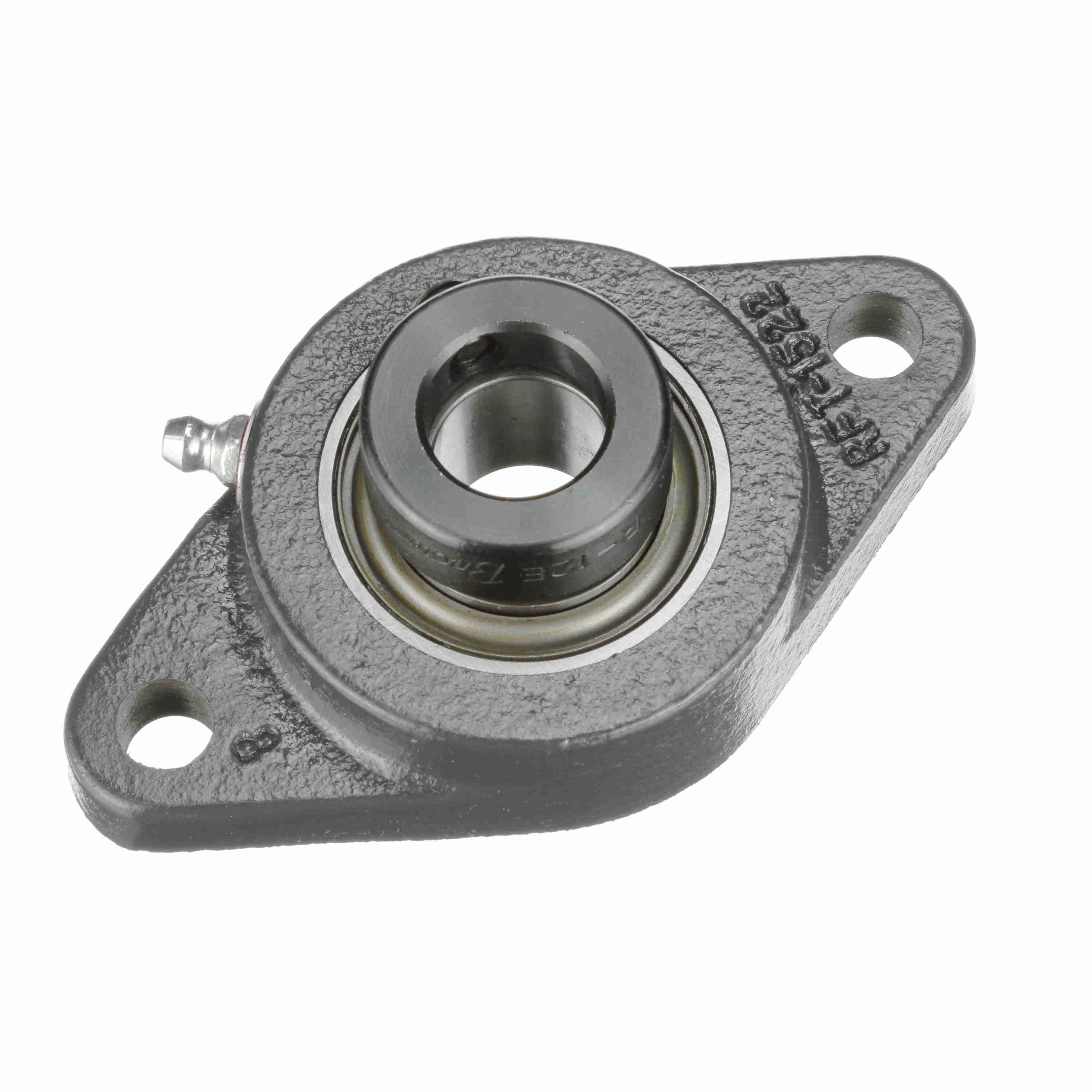

Browning® 767771 VF2E 100 Intermediate Duty Non-Expansion Flange Mount Ball Bearing Unit, 15/16 in Dia Bore, 3-57/64 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2-3/4 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289520602
-
Manufacturer Part Number767771
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Locking DeviceEccentric Collar
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type2-Bolt
-
Maximum Speed3500 rpm
-
TypeIntermediate Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
SeriesVF2E 100
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3-57/64 in
-
Bore Diameter15/16 in
-
Overall Depth1-35/64 in
-
Overall Height4-7/8 in
-
Overall Length/Diameter2-3/4 in
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- Lithium complex NLGI #2 grease
- Cast iron housing
- NLGI #2 lithium complex grease
- 52100 steel insert
-
Alternative Part NumberVF2E-115
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
