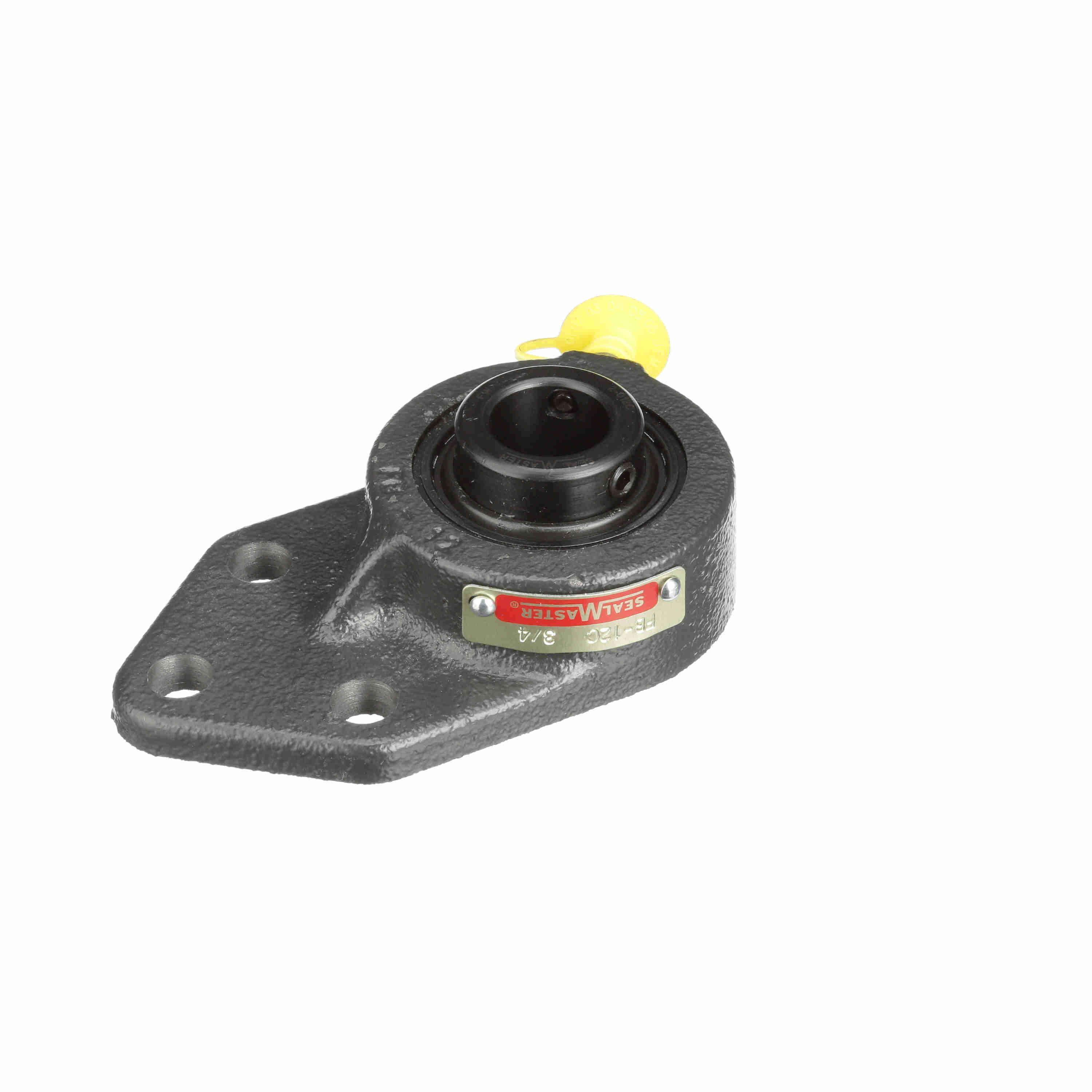

Sealmaster® 704056 FB Series Non-Expansion Standard-Duty Round/Straight Bore Ball Bearing Unit, 3/4 in Dia Bore, 1-1/2 in L Bolt Center-to-Center, 3-Bolt Flange Mount, 2-3/8 in OAL/Dia
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461025970
-
Manufacturer Part Number704056
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
Flange Mounting Type3-Bolt
-
Maximum Speed6450 rpm
-
TypeNon-Expansion Standard-Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesFB Series
-
Bearing Material52100 Steel
-
Bolt Center-to-Center Length1-1/2 in
-
Bore Diameter3/4 in
-
Overall Depth1-11/32 in
-
Overall Height4-3/16 in
-
Overall Length/Diameter2-3/8 in
- Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
- Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Wide black oxided outer ring with direct lubrication inlet hole
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberFB-12C
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Catalog
-
Instruction/Installation Manual
