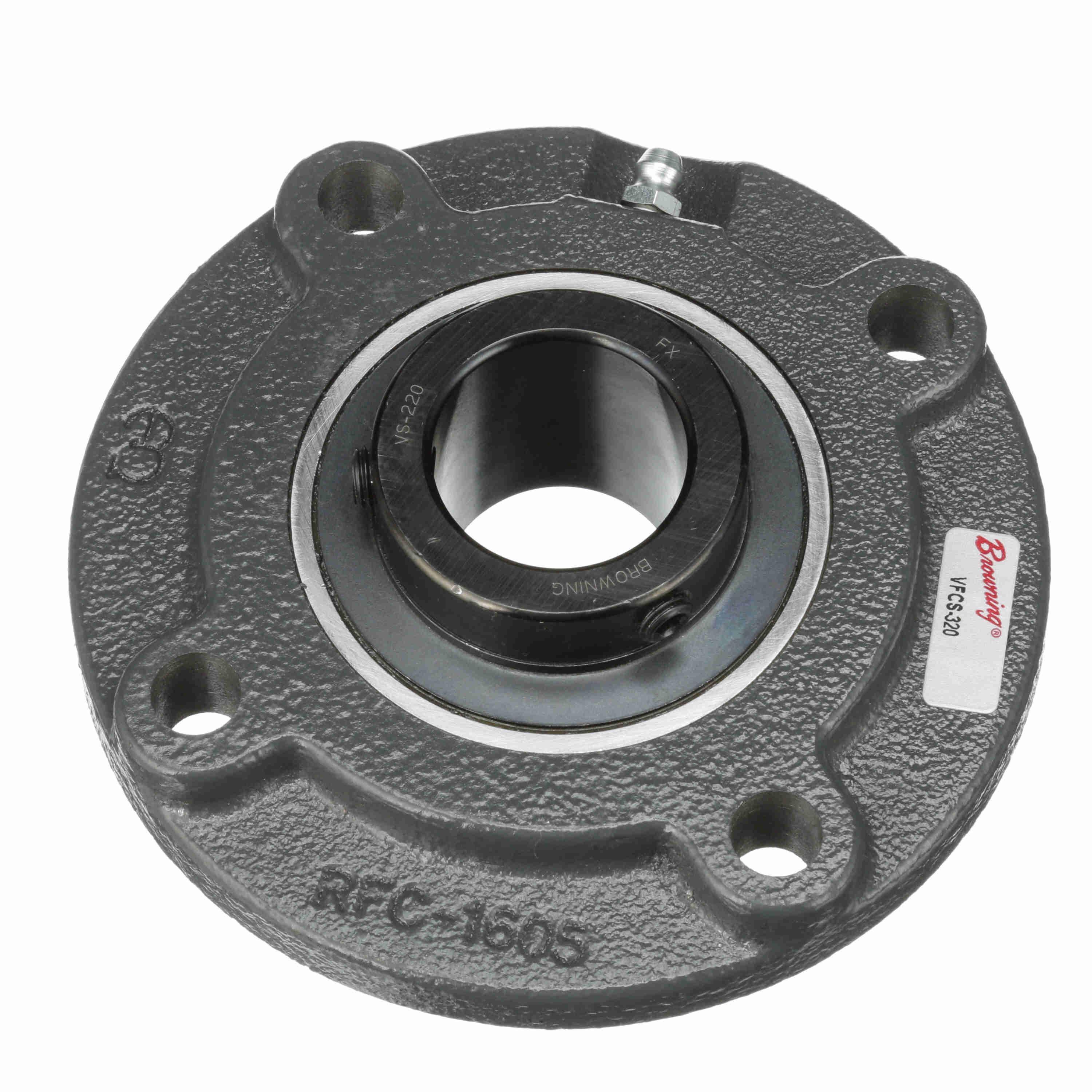

Browning® 767858 VFCS 300 Non-Expansion Medium Duty Round/Straight Bore Ball Bearing Cartridge Unit With Seal Flinger, 1-3/16 in Dia Bore, 4-1/8 in Dia Bolt Circle, 4-Bolt Flange Mount, 5 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289520374
-
Manufacturer Part Number767858
-
CountryUSA
-
Load Capacity4381 lb Dynamic/2567 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 deg F
-
Flange Mounting Type4-Bolt
-
Maximum Speed4000 rpm
-
TypeNon-Expansion Medium Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVFCS 300
-
Bearing MaterialSteel
-
Bolt Circle Diameter4-1/8 in
-
Bore Diameter1-3/16 in
-
Overall Depth1-11/16 in
-
Overall Length/Diameter5 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 black oxide coated insert
-
Alternative Part NumberVFCS-319
-
UNSPSC31171501
-
Warranty1 Year
-
Package DescriptionEACH
-
