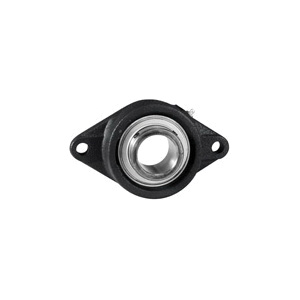

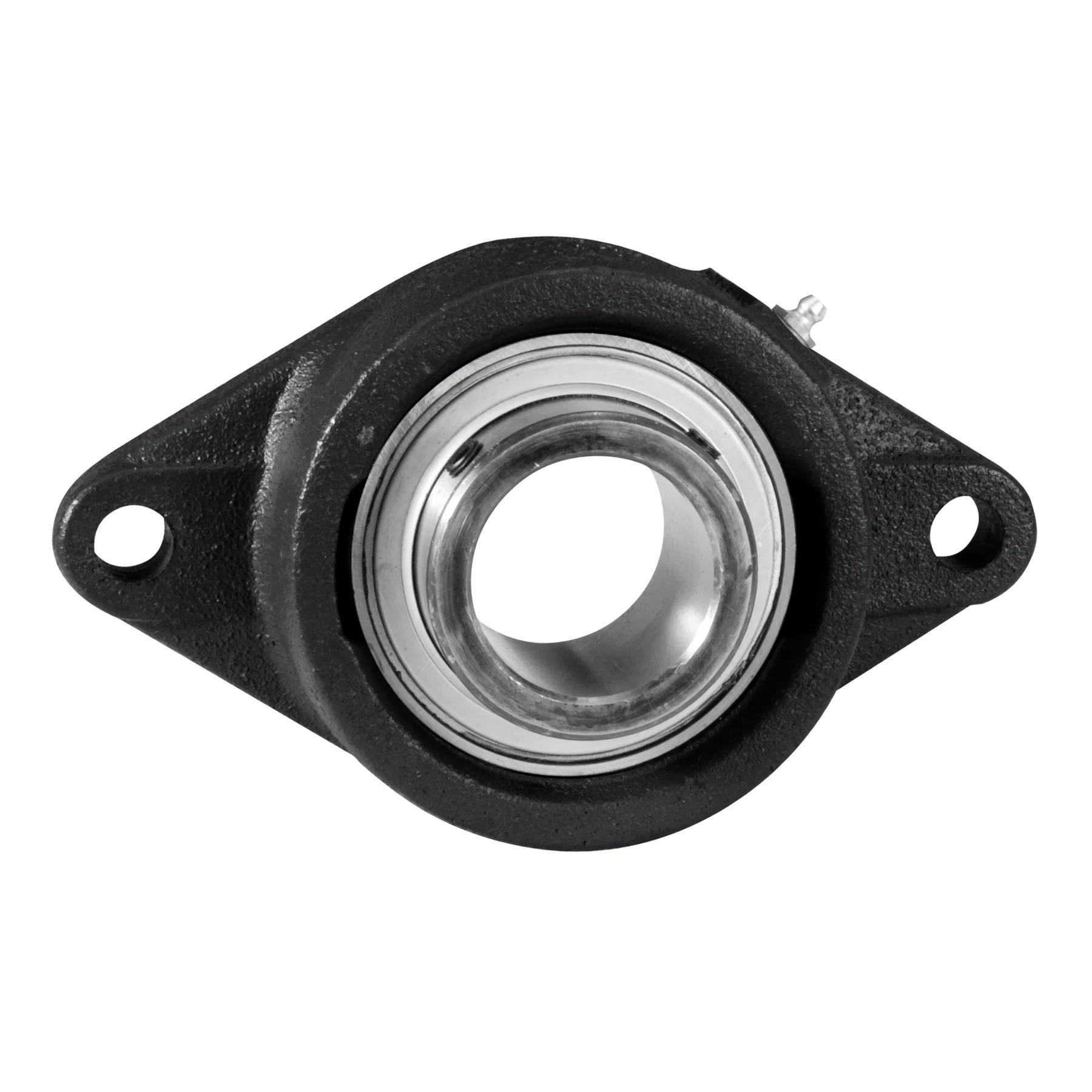

Link-Belt 1-7/16"-ID BEARINGS LNK FX-3-U-223-N
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
-
BrandLink-Belt®
-
UPC662327034535
-
Manufacturer Part Number10073990
-
CountryUSA|Canada
-
Load Capacity5810 lb Dynamic/3440 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
Flange Mounting Type2-Bolt
-
Maximum Speed4800 rpm
-
TypeStandard-Duty
-
Series200
-
Bearing MaterialAlloy Steel
-
Bolt Center-to-Center Length5-1/8 in
-
Bore Diameter1-7/16 in
-
Overall Depth1-59/64 in
-
Overall Height6-1/8 in
-
Overall Length/Diameter3-5/8 in
- Wide inner ring for increased shaft stability
- Spring locking setscrew mount
- Alignable and relubricatable
- Cast iron housing
- Single lip seal
-
Alternative Part NumberFX3U223N
-
UNSPSC31171501
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
