Sealmaster 3-7/16"-ID 4-BOLT BB FLANGE UNITS SEA EMSF-55

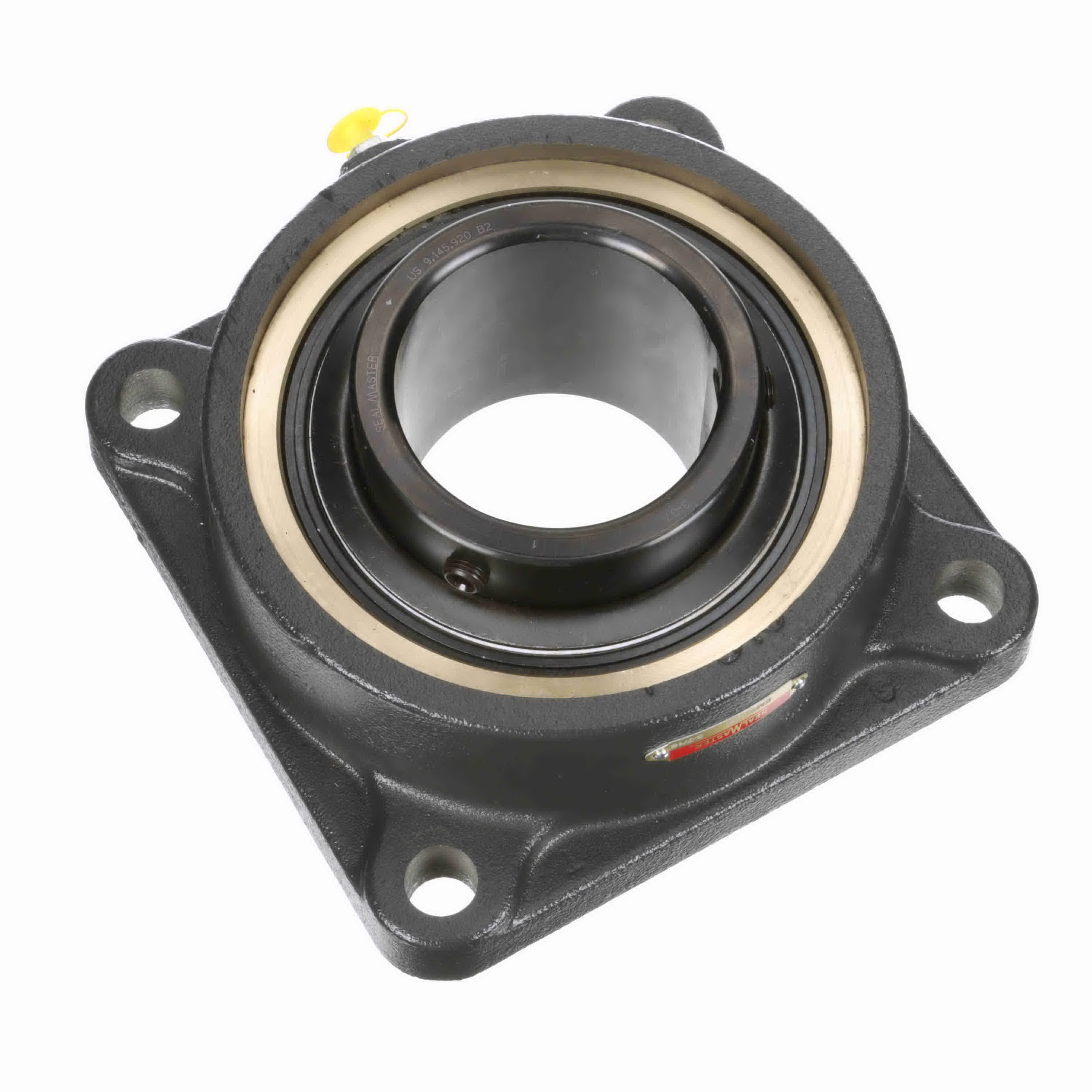

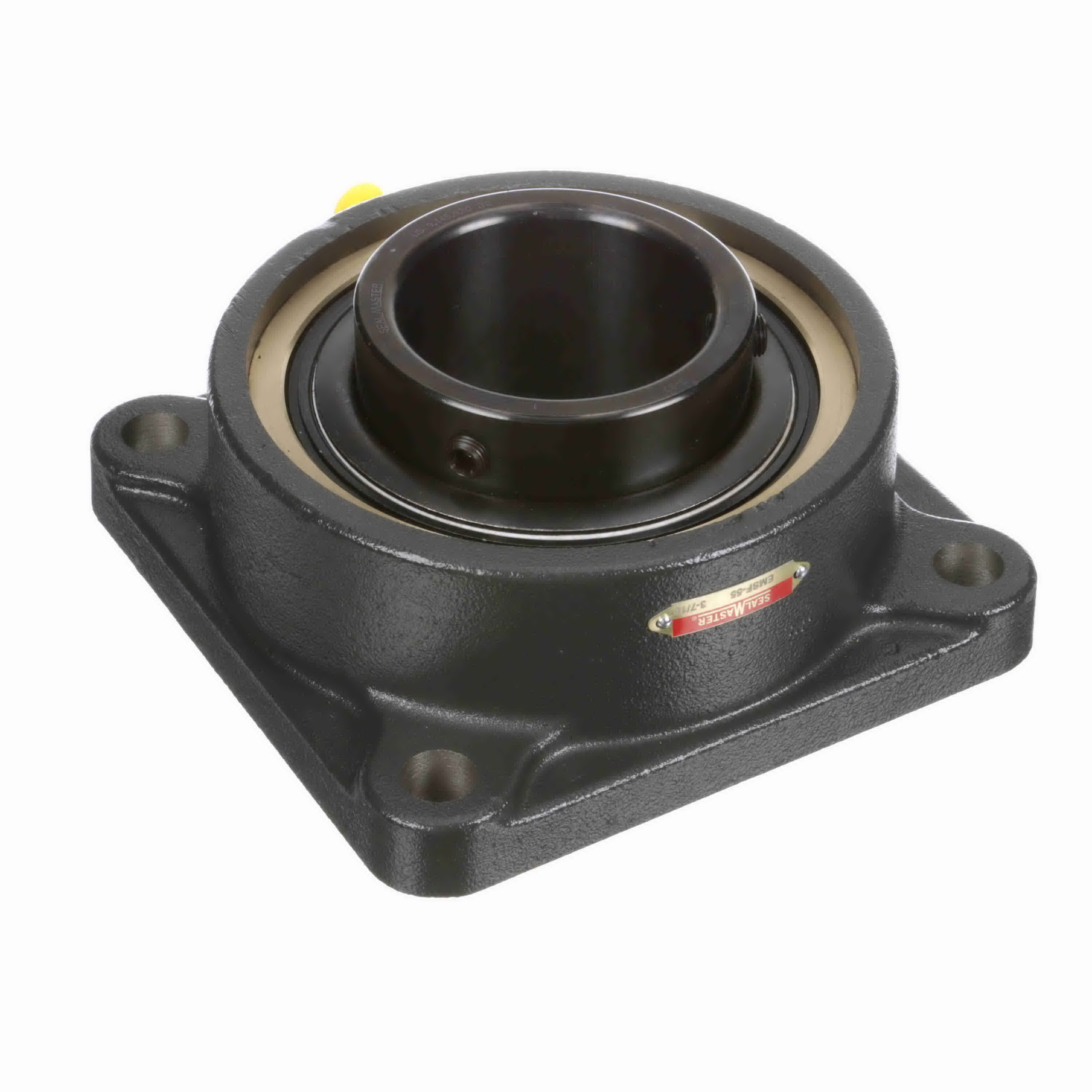

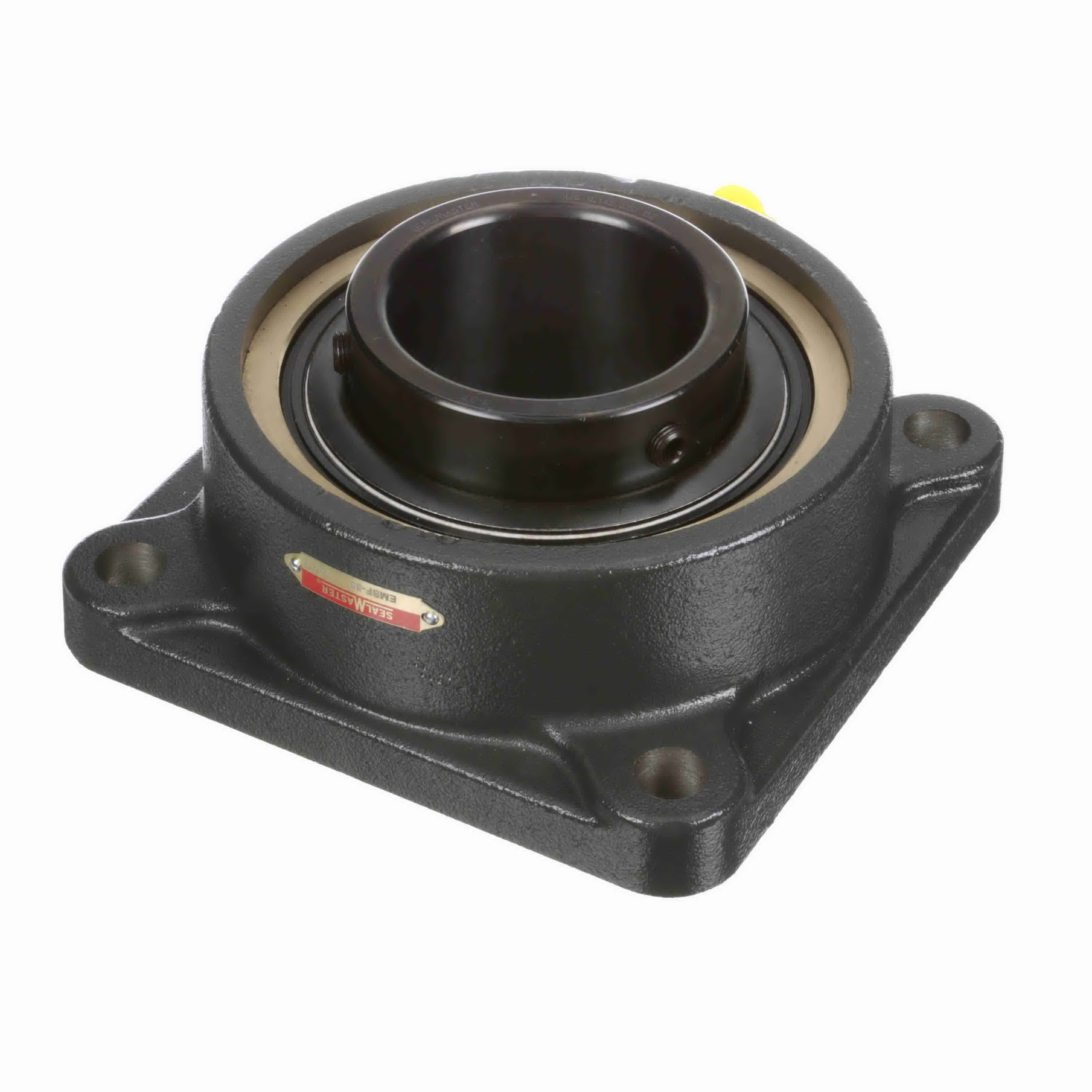

Sealmaster® 700124 Flange Mounted Ball Bearing, 3.438 in Dia Bore, 6-3/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount
-
BrandSealmaster®
-
UPC662461001080
-
Manufacturer Part Number700124
-
CountryUSA
-
Locking DeviceSet Screw
-
Temperature Rating220 deg F
-
FinishBlack Oxide
-
Flange Mounting Type4-Bolt
-
Maximum Speed2000 rpm
-
Bearing Material52100 Steel
-
Bolt Center-to-Center Length6-3/4 in
-
Bore Diameter3.438 in
-
Overall Height3.969 in
- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberEMSF-55
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Instruction/Installation Manual
