Sealmaster 1-1/2"-ID BB FLANGE UNITS HI-TEMP SEA SF-24-HT

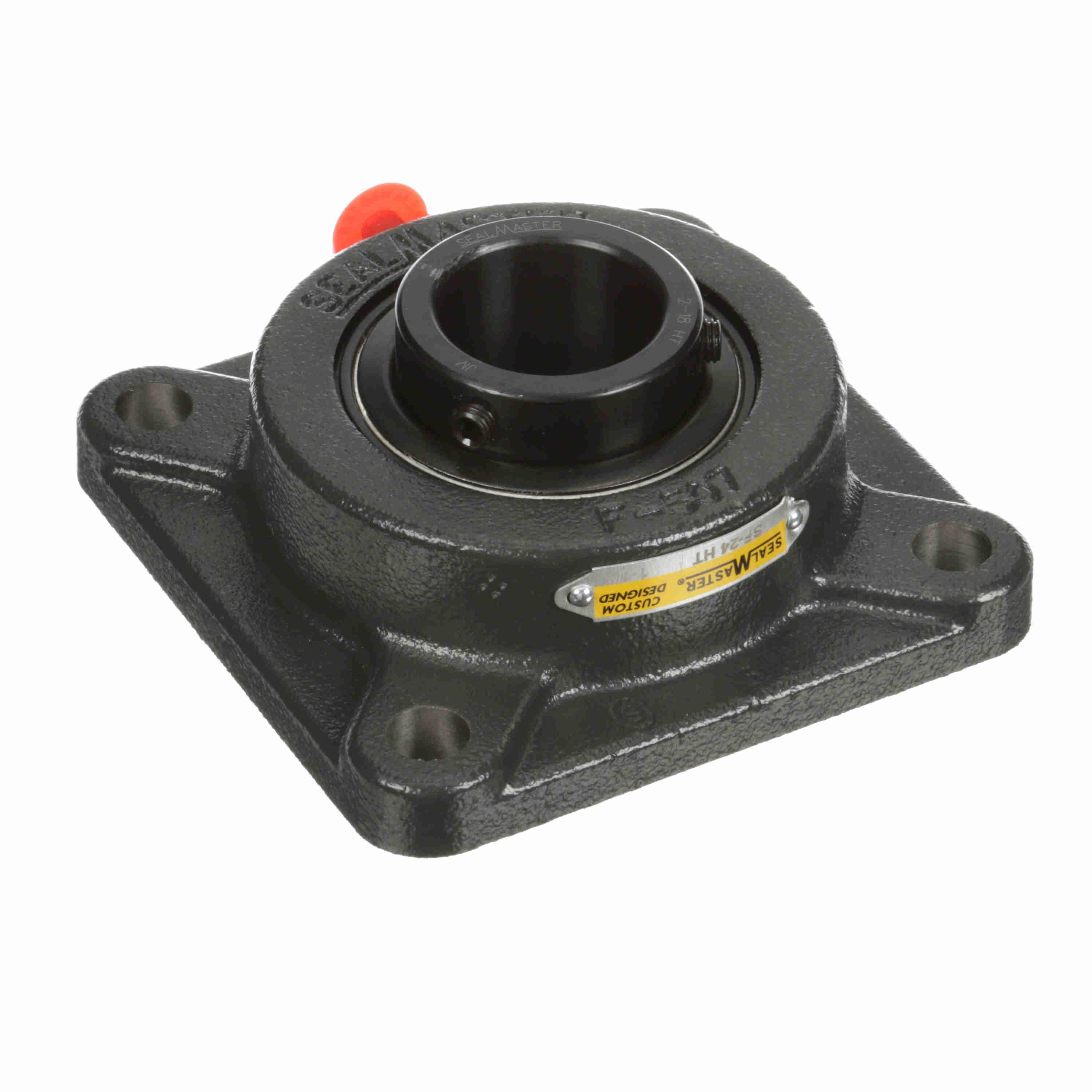

Sealmaster® 724100 Flange Mounted Ball Bearing, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount
-
BrandSealmaster®
-
UPC662461314937
-
Manufacturer Part Number724100
-
CountryUSA
-
Locking DeviceSet Screw
-
Temperature Rating400 deg F
-
FinishBlack Oxide
-
Flange Mounting Type4-Bolt
-
Maximum Speed1800 rpm
-
Bearing Material52100 Steel
-
Bolt Center-to-Center Length4 in
-
Bore Diameter1-1/2 in
-
Overall Height2.016 in
- Epoxy powder coated cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing set screw with diamond faceted set screws
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster® exclusive lock and pin dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSF-24 HT
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
