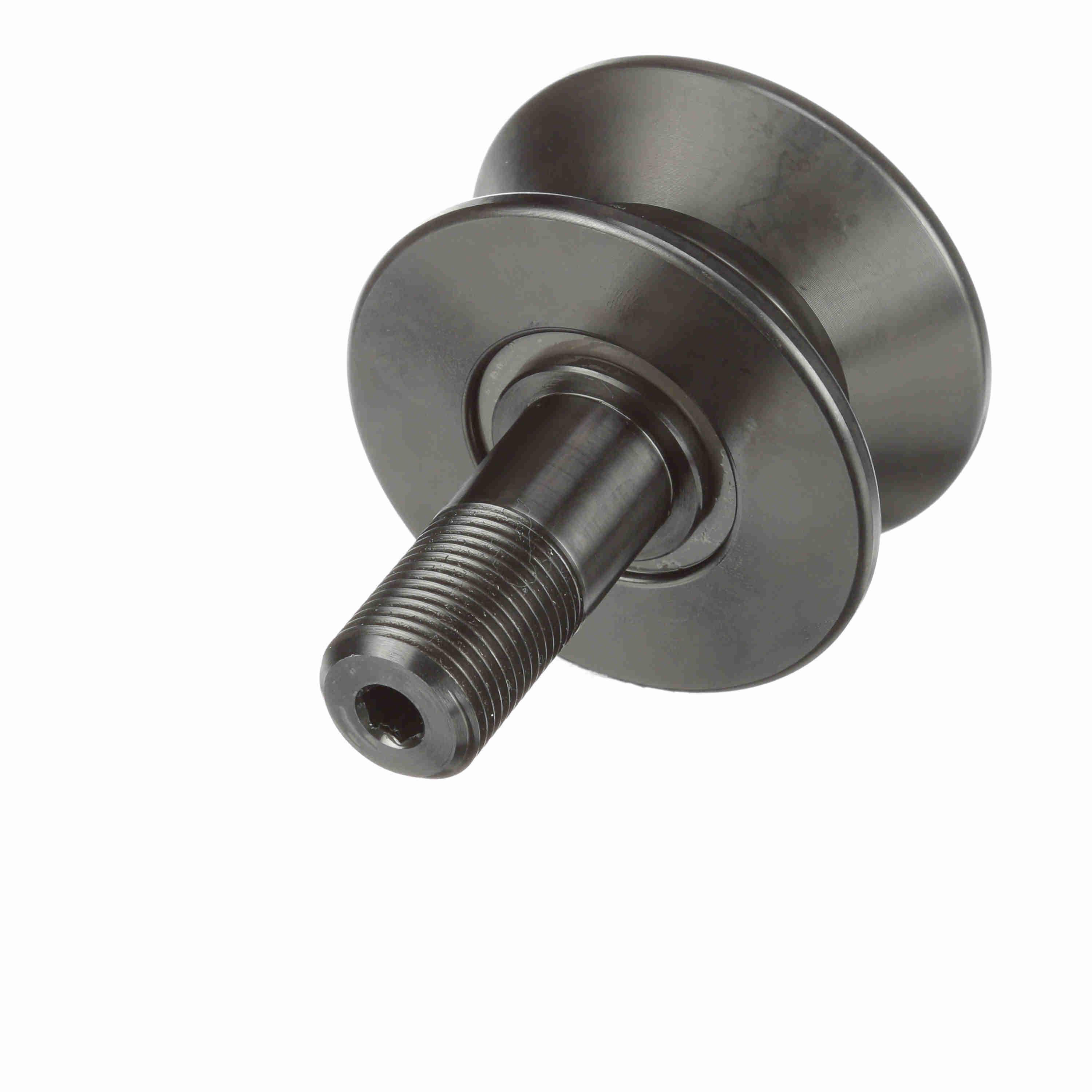

McGill 2-1/2" V-GROOVE ROLLERS W/STUDS MCG VCF-2-1/2
TRAKROL® bearings feature black oxide treated bearing steel. They utilize either a precision ball or tapered roller bearing insert for longer operating life under combination radial and thrust loads. The capacity for combination loads allows the TRAKROL® bearing to be available in plain (cylindrical), V-groove and flanged outside diameter in both stud and yoke styles. Small sizes less than 3 in outside diameter or point diameter use sealed ball bearing inserts. They also use a NYLAPLATE® seal for additional protection. Stud type configurations utilize a metal end plug seal on the roller face providing a long lasting seal. Both bearing types provide a large internal grease reservoir along with special sealing. This makes TRAKROL® bearings an excellent choice where reduced maintenance is required.
-
BrandMcGill®
-
UPC726166111373
-
Manufacturer Part Number2244900000
-
CountryUSA
-
Load Capacity2520 lb Dynamic/1370 lb Static/1320 lb Thrust
-
Temperature Rating-20 to 250 deg F
-
FinishBlack Oxide
-
Point Diameter1-1/2 in
-
Thread Length0.895 in
-
Thread Size3/4-16 UNC
-
Maximum Speed2500 rpm
-
Closure TypeSealed
-
TypeV-Groove
-
V-Groove Angle90 deg
-
Roller Diameter2-1/2 in
-
Roller Material52100 Bearing Steel
-
Roller Width1-5/16 in
-
SeriesVCF
-
Stud Diameter3/4 in
-
Stud Length1-3/4 in
-
Stud Material8620H Steel
-
Stud TypeStandard
- Precision ball or tapered roller bearing inserts allow for combination radial and thrust loads
- A heavy sectioned outer race design to help withstand shock loading of cam follower operation
- A ductile stem on stud type versions that provides toughness
- The threads are manufactured to a class 2 tolerance
- Bearings are supplied pre-lubricated and maintenance free
- Ball and tapered roller bearings have rubber lip contact seal
- NYLAPLATE® seal present on 1-1/2 to 2-3/3 in stud type version
- End plug present at outboard side of stud type versions to help keep contaminants out
- P0 equivalent precision rating
- Needle roller bearing element
-
Alternative Part NumberVCF 2 1/2
-
UNSPSC31171530
-
Package DescriptionEACH
-
