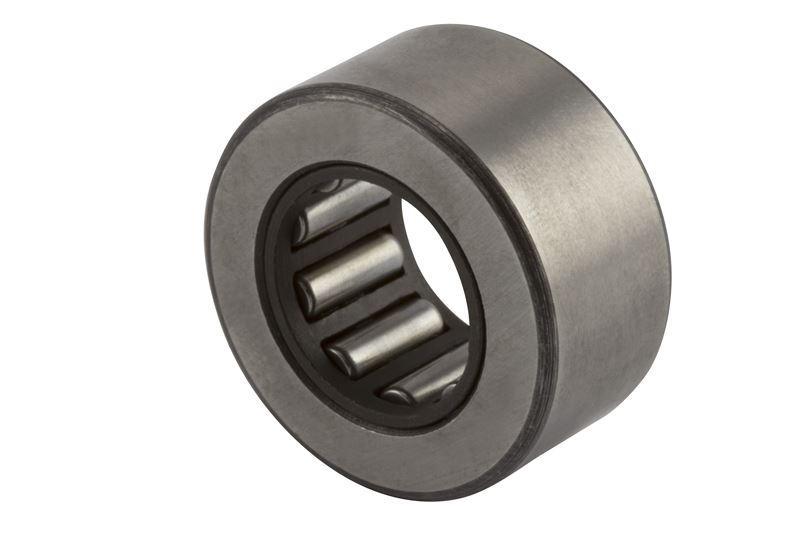

RBC® SRF 20 Caged Needle Roller Follower, 1/2 in Dia Bore, 1 in Dia x 0.495 in W Roller, 2200 lb Load, Chrome Steel Roller
Caged roller followers provide large internal grease storage capacity for applications where relubrication is infrequent. Cage guided rollers and a very heavy outer ring cross section permit operation at high loads and high speeds. Caged roller followers are avail able with and with out seals. The unsealed design provides the additional advantages of very low friction to prevent skidding in lightly loaded applications and provides for flow-through lubrication. Caged roller followers normally mount directly on a hardened and ground pin. RBC® offers a line of Precision Ground Inner Rings to simplify application of caged roller followers.
-
BrandRBC®
-
UPC637400006358
-
Manufacturer Part NumberSRF 20
-
CountryUSA
-
Load Capacity2200 lb
-
Temperature Rating0 to 250 deg F
-
FinishUncoated
-
Maximum Speed10900 rpm
-
Closure TypeOpen
-
TypeCaged
-
Roller Diameter1 in
-
Roller MaterialChrome Steel
-
Roller Width0.495 in
-
SeriesSRF
-
Bore Diameter1/2 in
-
Overall Width0.495 in
- Designed with large internal grease storage capacity for applications where relubrication is infrequent
- Cage guided rollers and a very heavy outer ring cross section permit operation at high loads and high speeds
- Unsealed design provides advantages of very low friction to prevent skidding in lightly loaded applications and provides for flow through lubrication
- 1900 lb dynamic/2200 lb static
- Flat outside ring
- Without stud
- Dynamic Load Bearing is 1900 lb
- Enclosure Type Unsealed
- Outer Diameter is 1 in
- Product Weight is 0.07 lbs
- Style Caged
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 11|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
