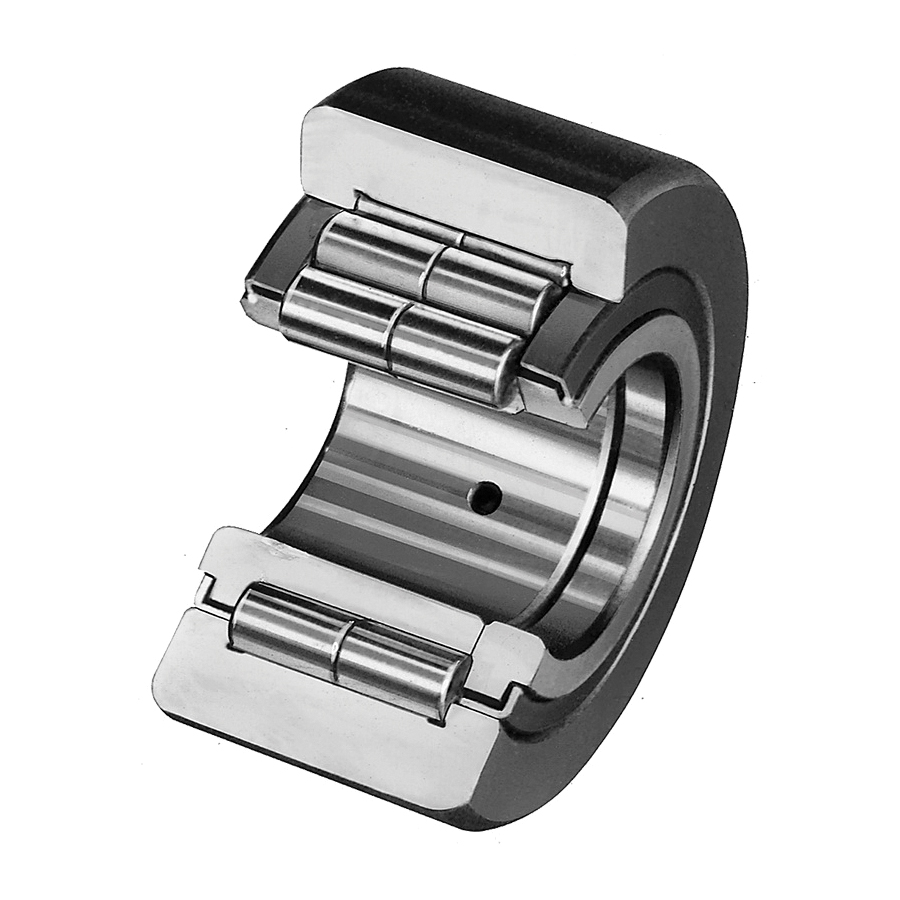

IKO NURT17R Metric Series Heavy Duty Uncaged Cylindrical Roller Follower With Crowned Outer Ring, Inner Ring and Oil Hole, 17 mm Dia Bore, 40 mm Dia x 20 mm W Roller, 25200 N Dynamic/30900 N Static Load, High Carbon Chrome Steel Roller
IKO manufacturers a variety of durable roller followers that feature needle rollers embedded in a thick outer ring, specifically designed for smooth outer ring rotation. Crowned and cylindrical outer ring styles meet a diverse range of application needs. Outer rings run directly on mating track surfaces.
-
BrandIKO
-
Manufacturer Part NumberNURT17R
-
CountryUSA
-
Load Capacity25200 N Dynamic/30900 N Static
-
Temperature Rating-20 to 120 deg C
-
Closure TypeShielded
-
TypeHeavy Duty Uncaged
-
Roller Diameter40 mm
-
Roller MaterialHigh Carbon Chrome Steel
-
Roller Width20 mm
-
SeriesNURT Metric Series
-
Bore Diameter17 mm
-
Overall Width21 mm
- Crowned outer rings that mitigate end loads due to installation errors
- Specifications for cam mechanisms and for linear guidance in conveying equipment
- Uncaged bearings handle heavy loads at low speeds as well as oscillating motions
- Cylindrical Roller Followers are uncaged, heavy duty roller bearings featuring double-row cylindrical rollers incorporated in the outer ring
- Shield style offers narrow clearances between outer rings and stud collars and between outer rings and end plates to form labyrinths
- Built to handle large radial loads and some axial loads
-
UNSPSC31171505
-
