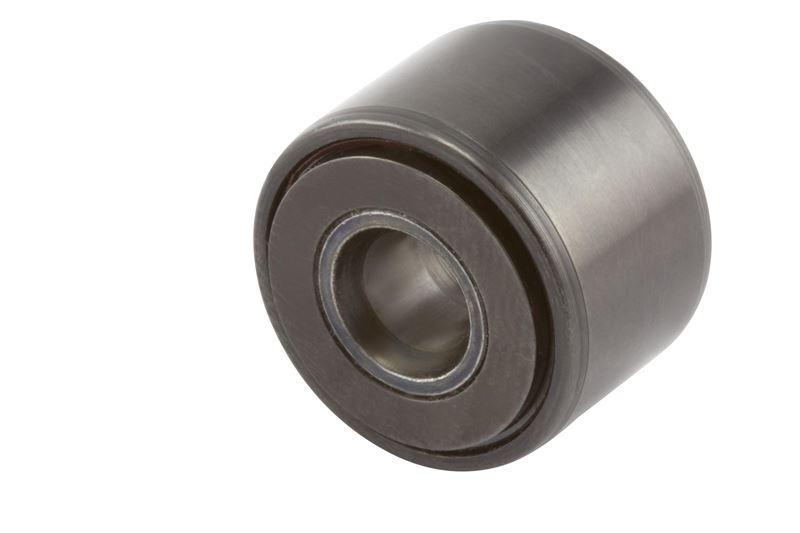

RBC® CY32L Universal Series™ Yoke Cylindrical Roller Cam Follower, 5/16 in Dia Bore, 1 in Dia x 5/8 in W Roller, 6150 lb Load, Chrome Steel Roller
RBC® CY32L Universal Series™ Yoke Cylindrical Roller Cam Follower, 5/16 in Dia Bore, 1 in Dia x 5/8 in W Roller, 6150 lb Load, Chrome Steel Roller
-
BrandRBC®
-
UPC637400005320
-
Manufacturer Part NumberCY32L
-
CountryUSA
-
Load Capacity6150 lb
-
Temperature Rating0 to 250 deg F
-
FinishBlack Oxide
-
Maximum Speed3140 rpm
-
Closure TypeDouble Seal
-
TypeYoke
-
Roller Diameter1 in
-
Roller MaterialChrome Steel
-
Roller Width5/8 in
-
SeriesUniversal Series™
-
Bore Diameter5/16 in
-
Overall Width11/16 in
- Yoke type design allows for clevis mounting which provides support on both sides of the cam follower and permits use of a high strength pin
- Crowned outer ring to better accommodate mild application misalignment
- Designed for moderate loads
- Double sealed to keep grease in and contaminants out
- 2300 lb dynamic/6150 lb static
- Without stud
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 11|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
