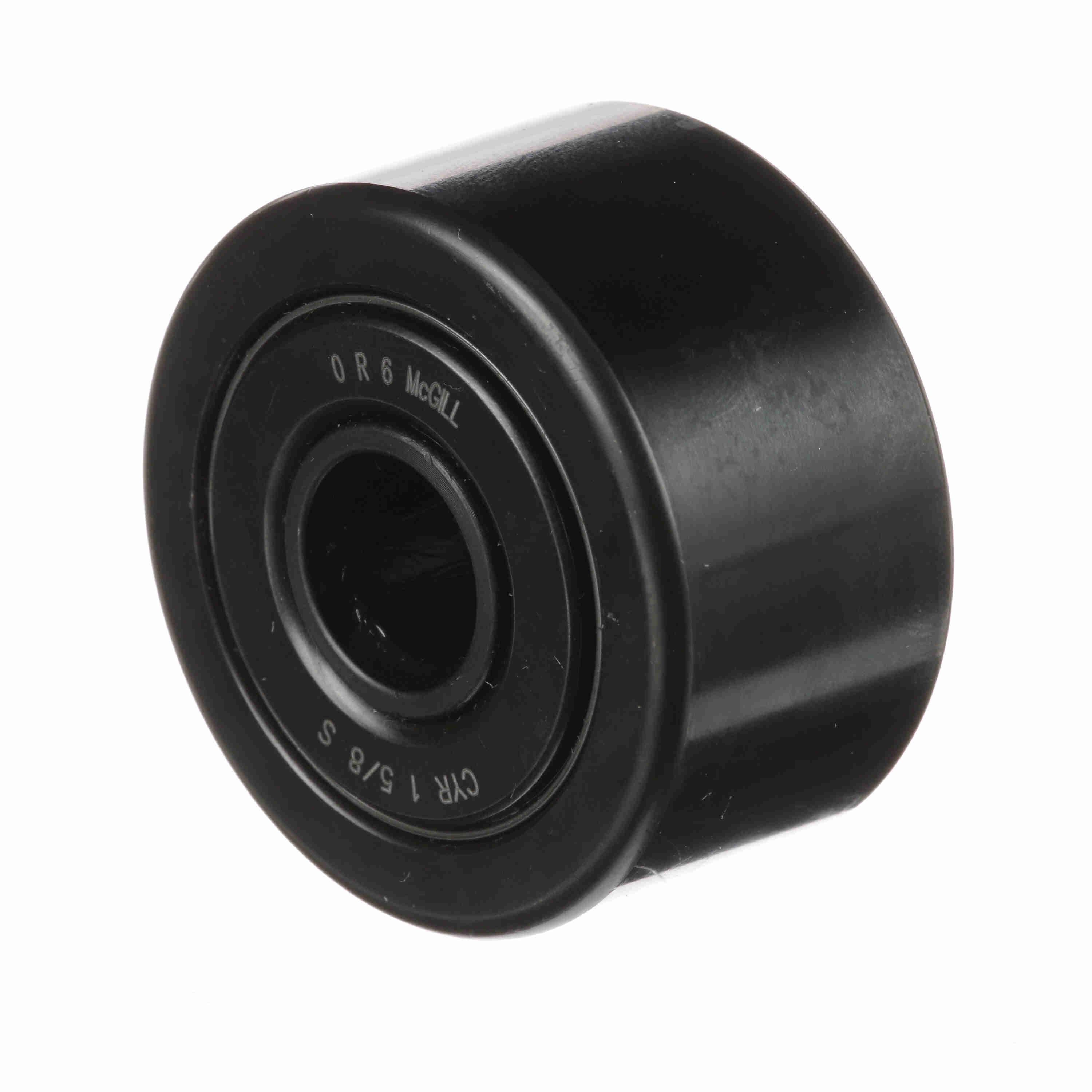

McGill® CAMROL® 4150110000 CYR Cylindrical OD Unmounted Cam Yoke Roller Bearing With LUBRI-DISC® Seal, 7/16 in Dia Bore, 1-5/8 in Dia x 7/8 in W Roller, 4840 lb Dynamic/11200 lb Static Load, Chrome Steel Roller
The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.
-
BrandMcGill®
-
UPC726166057138
-
Manufacturer Part Number4150110000
-
CountryUSA
-
Load Capacity4840 lb Dynamic/11200 lb Static
-
Temperature Rating-20 to 250 deg F
-
FinishBlack Oxide
-
Maximum Speed2350 rpm
-
Closure TypeSealed
-
TypeCylindrical OD
-
Roller Diameter1-5/8 in
-
Roller MaterialChrome Steel
-
Roller Width7/8 in
-
SeriesCYR
-
Bore Diameter7/16 in
-
Overall Width15/16 in
- Full complement needle roller construction provides high radial load capacity, it also provides improved resistance to shock loading versus caged needle bearing
- A heavy sectioned outer race design to help withstand shock loading of cam follower operation
- Inner studs are induction heat treated in the roller path and flange surfaces
- Black oxide finish on all external surfaces helps inhibit corrosion
- The annular groove in the outer raceway provides a lubrication reservoir which helps prolong lubrication intervals
- Needle roller bearing element
-
Alternative Part NumberCYR 1 5/8 S
-
UNSPSC31171505
-
Package DescriptionEACH
-
