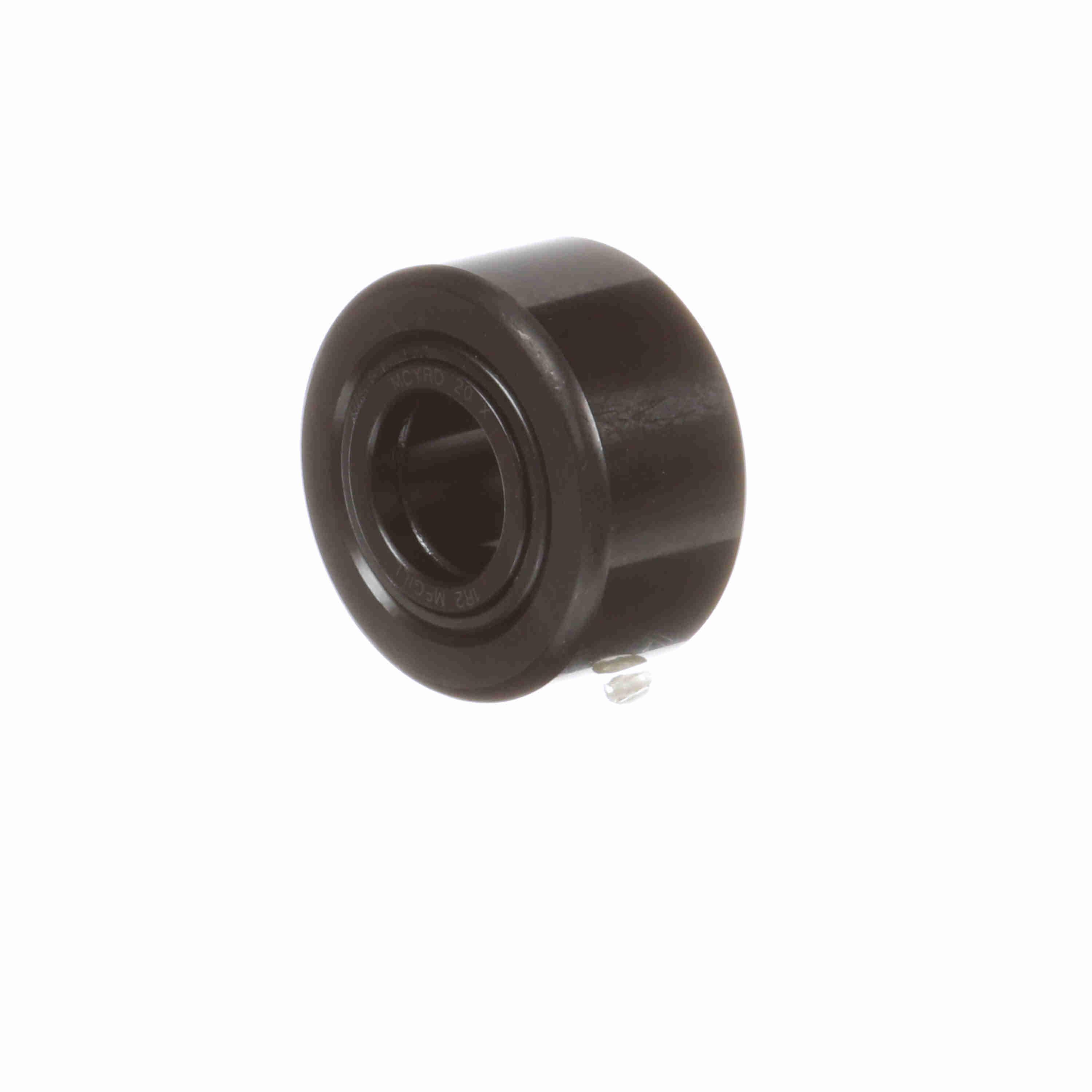

McGill® CAMROL® 3620070100 MCYRD Cylindrical OD Heavy Duty Unmounted Cam Yoke Roller Bearing, 20 mm Dia Bore, 47 mm Dia x 24 mm W Roller, 27000 N Dynamic/32000 N Static Load, Chrome Steel Roller
McGill® Heavy Duty CAMROL® bearings are full complement cylindrical roller bearings, featuring black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. The available styles are stud or yoke. Our standard integral flange construction of stud version bearings helps maintain bearing integrity throughout the life. The inch series utilizes a rubber lip seal to provide a barrier for contamination and lubricant retention. The metric series can utilize a metallic shield to provide a barrier for contamination. Within the following section you can learn more about how these and other features can be applied to your application.
-
BrandMcGill®
-
UPC726166053864
-
Manufacturer Part Number3620070100
-
CountryUSA
-
Load Capacity27000 N Dynamic/32000 N Static
-
Temperature Rating-20 to 250 deg F
-
FinishBlack Oxide
-
Maximum Speed4200 rpm
-
Closure TypeShielded
-
TypeCylindrical OD Heavy Duty
-
Roller Diameter47 mm
-
Roller MaterialChrome Steel
-
Roller Width24 mm
-
SeriesMCYRD
-
Bore Diameter20 mm
-
Overall Width25 mm
- Custom design and lubricant
- Double rows of cylindrical rollers for higher, radial load rating and incidental thrust capacity
- A heavy sectioned outer race design to help withstand shock loading of cam follower operation
- Inner studs are heat treated in the roller path and flange surfaces
- Black oxide finish on all external surfaces helps inhibit corrosion
- Metric series Heavy Duty CAMROL® bearings incorporate a metal shield to help protect bearing and retain grease
- Cylindrical roller bearing element
-
Alternative Part NumberMCYRD 20 X
-
UNSPSC31171505
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
