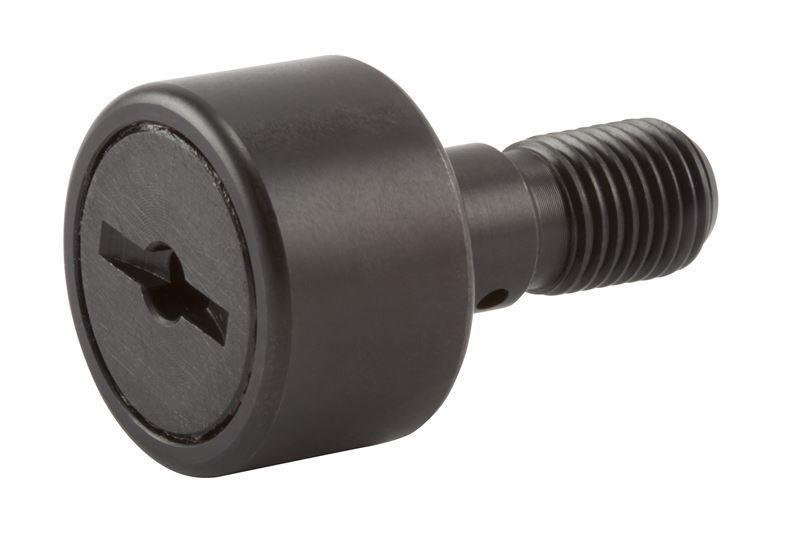

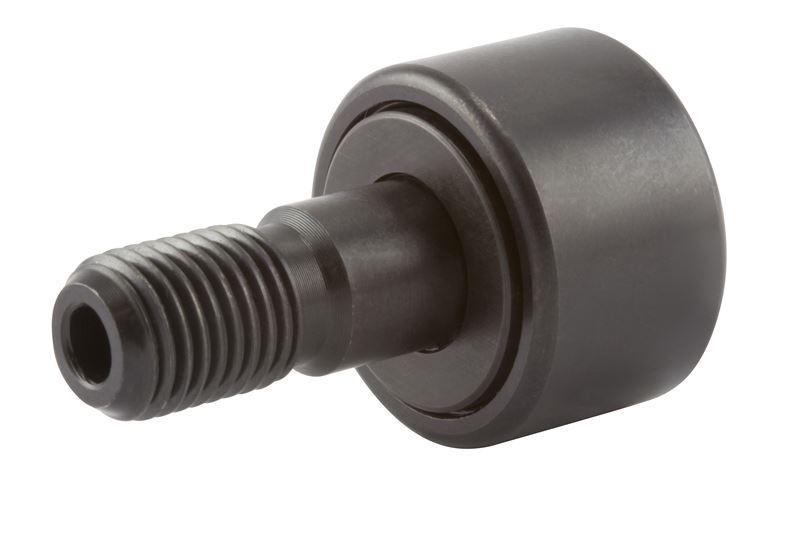

RBC Bearings 7/8" SLOTTED SEALED CAM FOLLOWER RBC S-28-L
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
-
BrandRBC®
-
UPC637400007683
-
Manufacturer Part NumberS28L
-
CountryUSA
-
Load Capacity1800 lb Dynamic/3100 lb Static
-
Temperature Rating250 deg F
-
FinishBlack Oxide
-
Thread Length3/8 in
-
Thread Size3/8-24 UNF-2A
-
Maximum Speed5000 rpm
-
Closure TypeSealed
-
TypeNeedle Roller
-
Roller Diameter7/8 in
-
Roller MaterialChrome Steel
-
Roller Width1/2 in
-
Head TypeSlotted
-
SeriesS-L Series
-
Stud Diameter3/8 in
-
Stud Length7/8 in
-
Stud MaterialChrome Steel
-
Stud TypeStandard
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
- Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
- Double sealed to keep grease in and contaminants out
- Screwdriver slots
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 11|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
