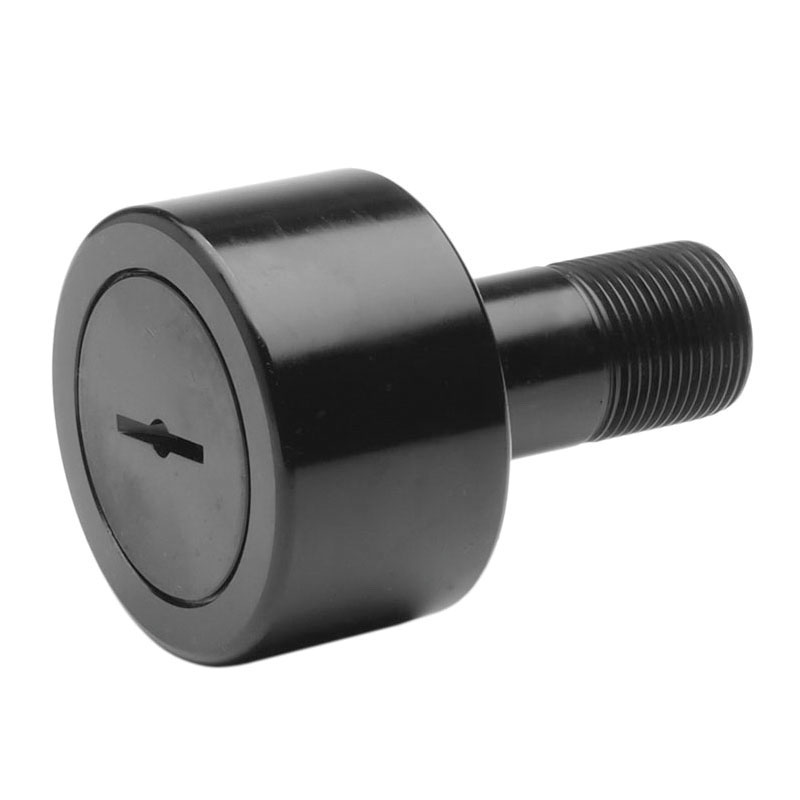

Smith Bearing® CR-2-1/2-X Cylindrical Stud Type Needle Bearing Cam Follower, 2-1/2 in Dia x 1-1/2 in W Roller, 1 in Dia x 2-1/4 in L Stud, 52100 Steel Roller
Screwdriver slot stud type needle roller bearings are recommended where running loads and shock loads are moderate. Bearing capacity of the stud type series is limited by the moderately sized stud. Manufactured from high alloy bearing quality steel. Most commonly used general purpose cam follower and available in sealed versions.
-
BrandSmith Bearing®
-
UPC651041135215
-
Manufacturer Part NumberCR-2-1/2-X
-
CountryUSA
-
Load Capacity15280 lb Dynamic/16650 lb Static
-
Thread Length1-1/8 in
-
Thread Size1-14 UNF-2A
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter2-1/2 in
-
Roller Material52100 Steel
-
Roller Width1-1/2 in
-
Head TypeScrewdriver Slot
-
SeriesCR-X
-
Stud Diameter1 in
-
Stud Length2-1/4 in
-
Stud MaterialCarbon Steel
-
Stud TypeStandard
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 13W697 |
-
UNSPSC31171530
-
Warranty12 months
-
Full Engineering Drawing
-
Catalog
