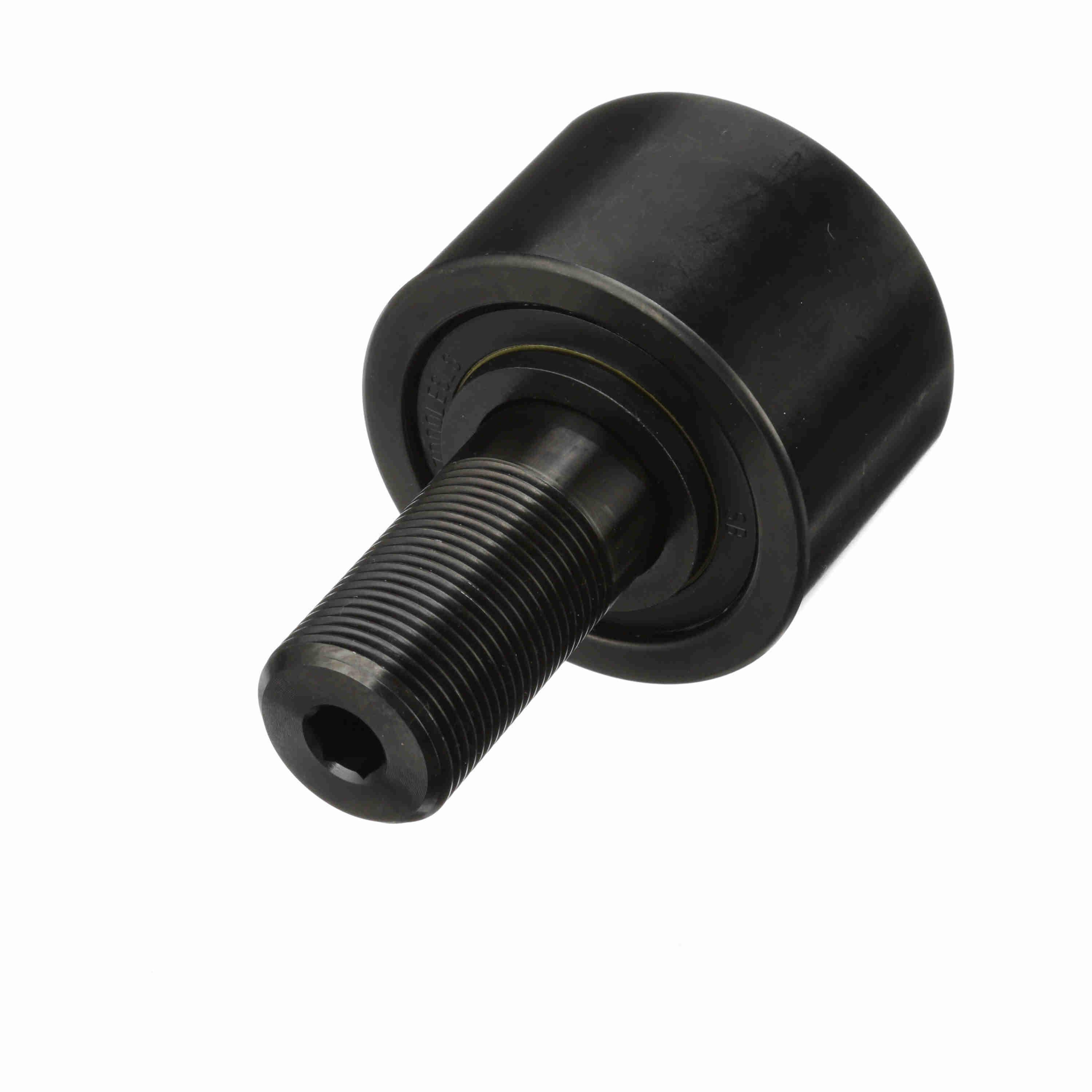

McGill 3" TRAKROL TRACK ROLLERS MCG PCF-3
TRAKROL® bearings feature black oxide treated bearing steel. They utilize either a precision ball or tapered roller bearing insert for longer operating life under combination radial and thrust loads. The capacity for combination loads allows the TRAKROL® bearing to be available in plain (cylindrical), V-groove and flanged outside diameter in both stud and yoke styles. Small sizes less than 3 in outside diameter or point diameter use sealed ball bearing inserts. They also use a NYLAPLATE® seal for additional protection. Stud type configurations utilize a metal end plug seal on the roller face providing a long lasting seal. Both bearing types provide a large internal grease reservoir along with special sealing. This makes TRAKROL® bearings an excellent choice where reduced maintenance is required.
-
BrandMcGill®
-
UPC726166039455
-
Manufacturer Part Number2304700000
-
CountryUSA
-
Load Capacity14300 lb Dynamic/16000 lb Static
-
Temperature Rating-20 to 250 deg F
-
FinishBlack Oxide
-
Thread Length1-3/4 in
-
Thread Size1-1/4-12 UNC
-
Maximum Speed950 rpm
-
Closure TypeSealed
-
TypeCylindrical OD
-
Roller Diameter3 in
-
Roller MaterialChrome Steel
-
Roller Width2 in
-
Head TypeHex
-
SeriesPCF
-
Stud Diameter1-1/4 in
-
Stud Length2-1/2 in
-
Stud Material8620H Steel
-
Stud TypeStandard
- Precision ball or tapered roller bearing inserts allow for combination radial and thrust loads
- A heavy sectioned outer race design to help withstand shock loading of cam follower operation
- A ductile stem on stud type versions that provides toughness
- Ball and tapered roller bearings have rubber lip contact seal
- The inch design threads are manufactured to a class 2 tolerance
- Bearings are supplied pre-lubricated and maintenance free
-
Alternative Part NumberPCF 3
-
UNSPSC26101708
-
Standards/ApprovalsABMA Standard
-
Package DescriptionEACH
-
