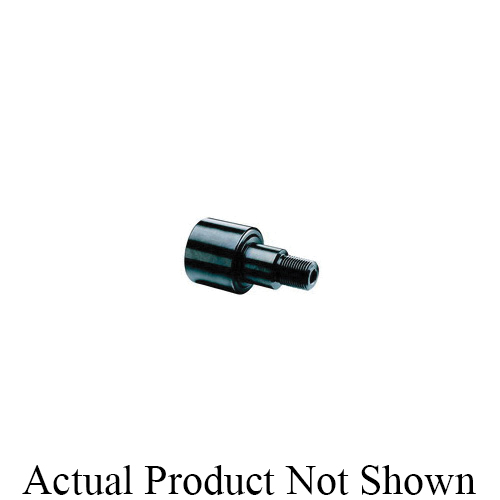

McGill® TRAKROL® 2165100000 PCFE Cylindrical OD Cam Follower, 1-3/4 in Dia x 1-3/16 in W Roller, 3/4 in Dia x 1-3/4 in L Stud, Chrome Steel Roller
TRAKROL® bearings feature black oxide treated bearing steel. They utilize either a precision ball or tapered roller bearing insert for longer operating life under combination radial and thrust loads. The capacity for combination loads allows the TRAKROL® bearing to be available in plain (cylindrical), V-groove and flanged outside diameter in both stud and yoke styles. Small sizes less than 3 in outside diameter or point diameter use sealed ball bearing inserts. They also use a NYLAPLATE® seal for additional protection. Stud type configurations utilize a metal end plug seal on the roller face providing a long lasting seal. Both bearing types provide a large internal grease reservoir along with special sealing. This makes TRAKROL® bearings an excellent choice where reduced maintenance is required.
-
BrandMcGill®
-
UPC726166111359
-
Manufacturer Part Number2165100000
-
CountryUSA
-
Load Capacity2520 lb Dynamic/1370 lb Static
-
Temperature Rating-20 to 250 deg F
-
FinishBlack Oxide
-
Thread Length7/8 in
-
Thread Size3/4-16 UNC
-
Maximum Speed2200 rpm
-
Closure TypeSealed
-
TypeCylindrical OD
-
Roller Diameter1-3/4 in
-
Roller MaterialChrome Steel
-
Roller Width1-3/16 in
-
Head TypeHex
-
SeriesPCFE
-
Stud Diameter3/4 in
-
Stud Length1-3/4 in
-
Stud Material8620H Steel
-
Stud TypeEccentric
- Precision ball or tapered roller bearing inserts allow for combination radial and thrust loads
- A heavy sectioned outer race design to help withstand shock loading of cam follower operation
- A ductile stem on stud type versions that provides toughness
- Ball and tapered roller bearings have rubber lip contact seal
- The inch design threads are manufactured to a class 2 tolerance
- Bearings are supplied pre-lubricated and maintenance free
-
Alternative Part NumberPCFE 1 3/4
-
UNSPSC26101708
-
Standards/ApprovalsABMA Standard
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
