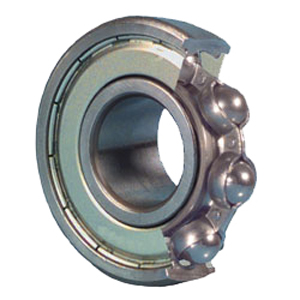

Koyo Bearing DOUBLE-SHIELDED THIN BALL BEARINGS KOY 6908-ZZ
Koyo 6908ZZ 6900 Round Deep Groove Ball Bearing, 40 mm Dia Bore, 62 mm Dia Outside, 1 Rows, 12 mm W, 17.1 kN Dynamic/9.95 kN Static Load
-
BrandKoyo
-
UPC605790086878
-
Manufacturer Part Number6908ZZ
-
CountryUSA
-
Load Capacity17.1 kN Dynamic/9.95 kN Static
-
Cage MaterialSteel
-
Temperature Rating-30 to 110 deg C
-
Maximum Speed11000 rpm Grease
-
Closure TypeDouble Shield
-
TypeRound
-
Width12 mm
-
Series6900
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter62 mm
-
Bore Diameter40 mm
- All double sealed and double shielded product come with Polyrex XM Grease
- Available in max capacity or special heat treat (RSH2 in suffix)
- Available in miniature (EE) inch product
- Available with cermamic balls (3NCH or 3NC in prefix)
- Available with seals (2RD, 2RS, 2RU), shields (ZZ), open and/or with a snap ring (NR) options
- Available with steel (no callout) or brass (FY) cage
- Made from premium high carbon, high chromium Japanese steel
- The 2RD Seal is used for high speed and/or reduced drag applications in addition to applications that require maximum sealing ability
-
