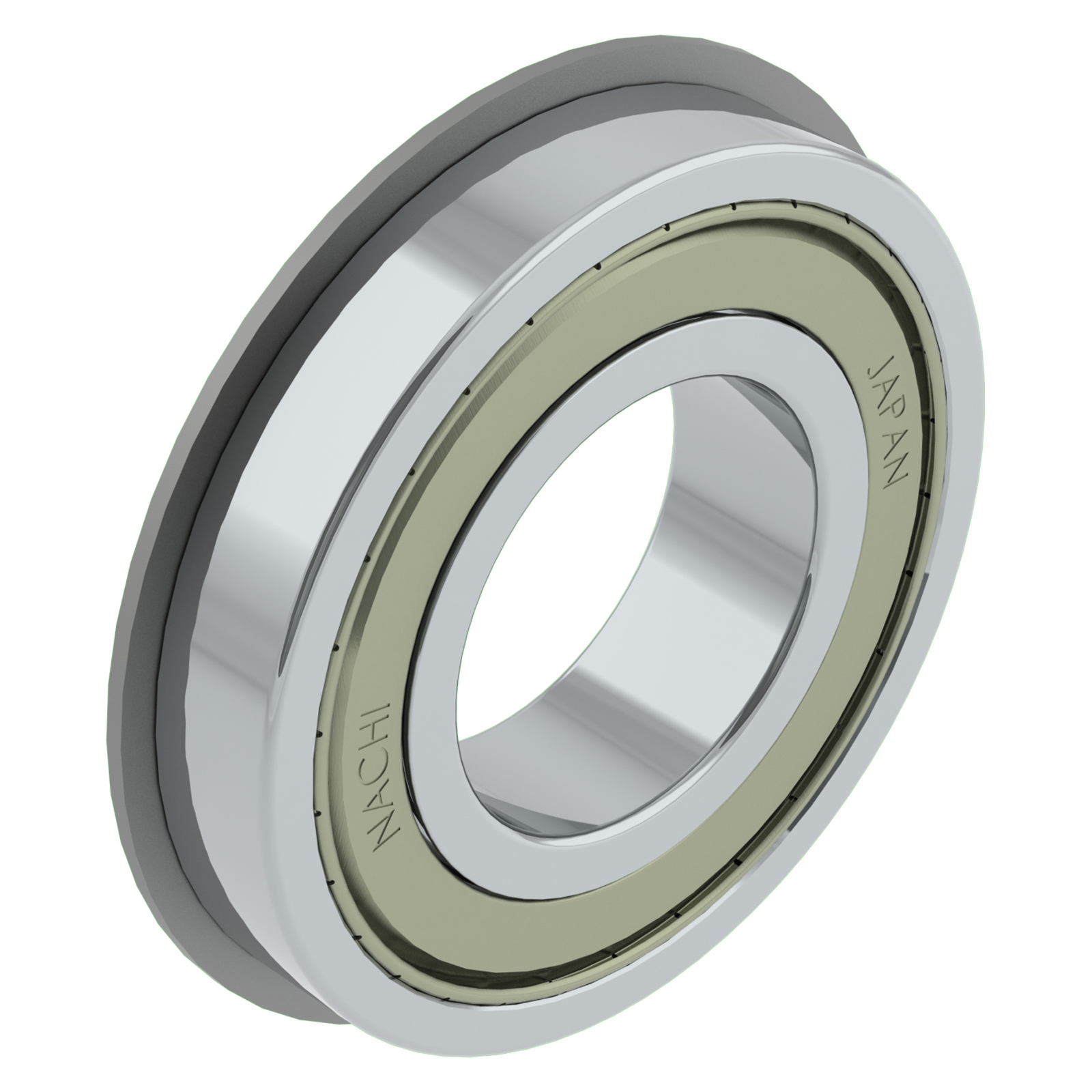

NACHI DOUBLE SHIELDED BALL BEARINGS WSR NAC 6301-ZZ-NR

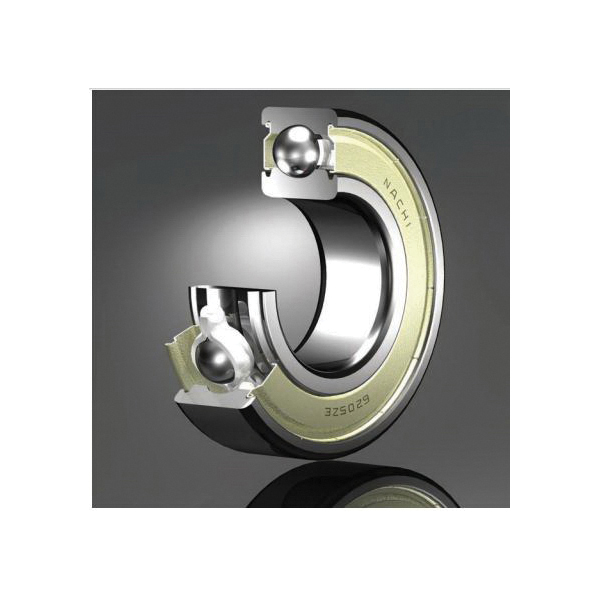

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
-
BrandNACHI
-
Manufacturer Part Number6301ZZENR
-
CountryUSA
-
Load Capacity9750 N Dynamic/4250 N Static
-
Cage MaterialStamped Steel
-
Temperature Rating250 deg F
-
Maximum Speed20000 rpm Grease/24000 rpm Oil
-
Closure TypeDouble Shield
-
Width12 mm
-
Series6300
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter37 mm
-
Bore Diameter12 mm
- Excellent high speed capability
- Good radial load capacity
- Good axial load capacity in both directions
- Low torque requirements during startup and operation
- Low noise
- Little/no maintenance required
- Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
- Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
- Snap ring and groove
-
UNSPSC31171504
-
Package DescriptionEACH
-
