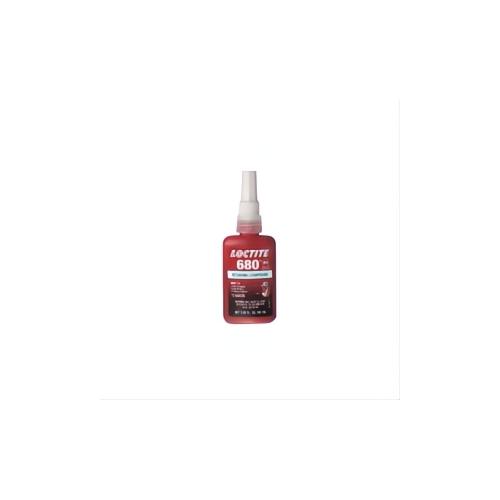

Loctite 50-ML #680 H/S RETAINING COMPOUND LOC 68035
Loctite® 1835201 680™ 1-Part High Strength Retaining Compound, 50 mL Bottle, Liquid, Green, 1.1000000000000001
-
BrandLoctite®
-
UPC079340006843
-
Manufacturer Part Number1835201
-
CountryUSA
-
Temperature Rating-65 to 355 deg F
-
Flash Point199.94 deg F
-
FormLiquid
-
ColorGreen
-
Type1-Part High Strength
-
CompositionDimethacrylate Ester, Methacrylate Monomer, 2-Hydroxyethyl Meth Acrylate Polyurethane Methacrylate Resin, Acrylic Acid, Hydroxyalkyl Meth Acrylate Polyglycol Dimethacrylate, Methacrylic Acid, Cumene Hydroperoxide
-
VOC Content4.74 g/L
-
Viscosity Rating4000 cPs
-
Container Size50 mL
-
Container TypeBottle
-
Applicable MaterialsAluminum, Copper, Magnesium Alloy and Steel
-
Series680™
-
Curing Time24 hr
-
Setting Time10 min
-
Shear Strength4000 psi
-
Specific Gravity1.1
-
Odor/ScentCharacteristic
- Loctite® 680™ retaining compound is a high strength, high viscosity room temperature curing adhesive used to join fitted cylindrical parts
- It fixtures in 10 minutes and provides a shear strength of 4000 psi
- Capable of filling diametral gaps up to 0.015 in
- Loctite® 680 allows relaxed machining tolerances, and replaces clamp rings, set screws, and snap rings
- Gives best resistance to dynamic, axial and radial loads
- Fills 0.015 gap
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | LM501835201 |
-
UNSPSC31201705
-
Package Description1/PK
-
Standards/ApprovalsNSF/ANSI 61|CFIA Approved|OSHA 29 CFR 1910.1200|ABS Approved|ISO Certified
