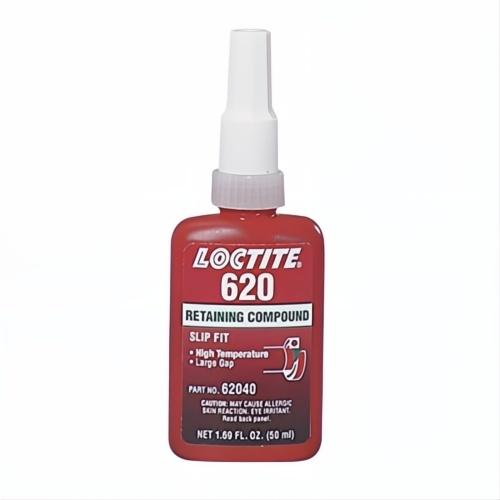

Loctite® 135514 620™ High Temperature Retaining Compound, 50 mL Bottle, Liquid, Green, 1.1599999999999999
LOCTITE® 620™ retaining compound high temperature is recommended for high temperature retaining of parts with a clearance or interference fit, i.e., retaining bushings, bearings, seals, fans and liners. Requires heat cure to achieve temperature resistance
-
BrandLoctite®
-
UPC079340620407
-
Manufacturer Part Number135514
-
CountryUSA|Canada
-
Temperature Rating-65 to 450 deg F
-
Flash Point199.94 deg F
-
FormLiquid
-
ColorGreen
-
TypeHigh Temperature
-
CompositionDimethacrylate ester, Resin, Hydroxyalkyl methacrylate, Cumene hydroperoxide, Silica, amorphous, fumed, crystal-free, Polyglycol Dimethacrylate, Cumene, 1-Acetyl-2-phenylhydrazine
-
VOC Content2.24 g/L
-
Viscosity Rating8500 cPs
-
Container Size50 mL
-
Container TypeBottle
-
Application Time1 hr
-
Series620™
-
Curing Time24 hr
-
Shear Strength3800 psi
-
Specific Gravity1.16
-
Odor/ScentMild
- A high viscosity liquid retaining compound
- Locks and secures metal cylindrical assemblies up to 0.015 in diameter clearance
- Prevents metal fretting and corrosion
- Seals against leakage
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4KM33 |
-
Alternative Part Number62040
-
UNSPSC31201600
-
Package Description1/PK
-
Standards/ApprovalsABS Approved|CFIA Listed
